2000 Nm Detachable Offset Gear Attachment for Electric And Cordless Torque Wrenches

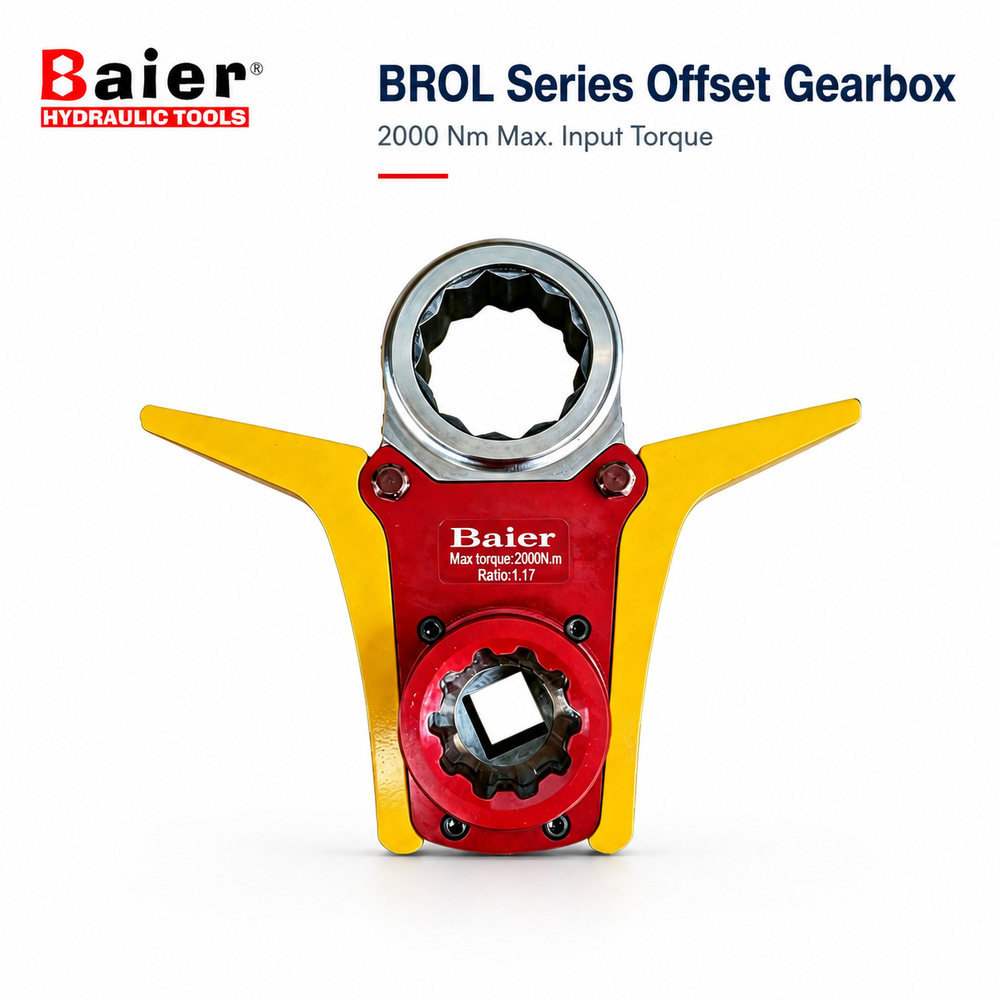

                          BROL Series Offset Gearbox                            A Detachable Offset Gear Attachment for Restricted-Access Bolting

The BROL Series Offset Gearbox shifts the working position away from the torque wrench axis, allowing the working head to reach nuts located close to walls, structural frames or adjacent bolts.

Designed as an offset gear attachment for compatible electric and cordless torque wrenches, it provides a practical solution for industrial bolting where direct tool alignment is not possible.

• Maximum Input Torque: 2000 Nm

• Conversion Ratio: 1.17

• Working-Head Sizes: 36–60 mm

• Structure: Detachable and Interchangeable

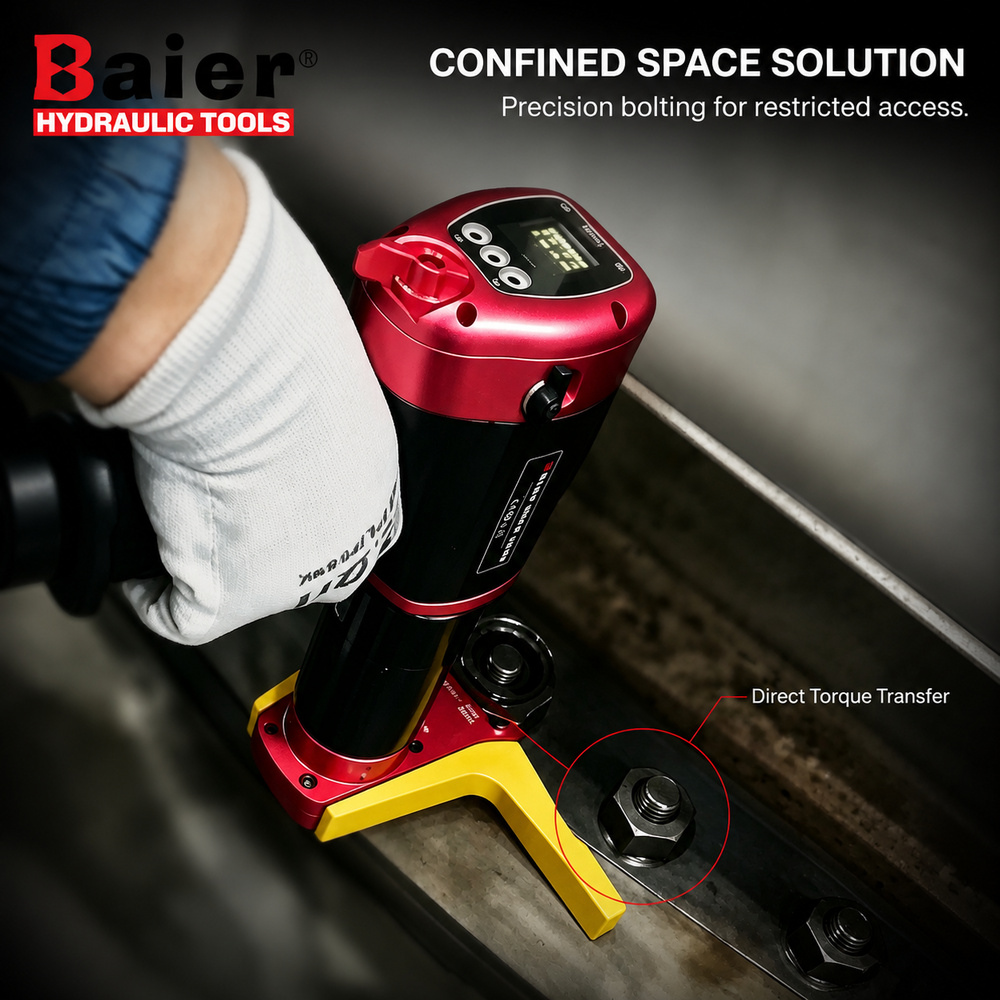

Reach Bolts That Standard Torque Wrenches Cannot Access

When a conventional torque wrench cannot align directly with the nut, the BROL Offset Gearbox transfers torque to an offset working head. This makes it suitable for close bolt groups, narrow flanges, machinery frames and fasteners positioned near walls or other obstructions.

The reaction structure must be placed against a stable support point before operation.

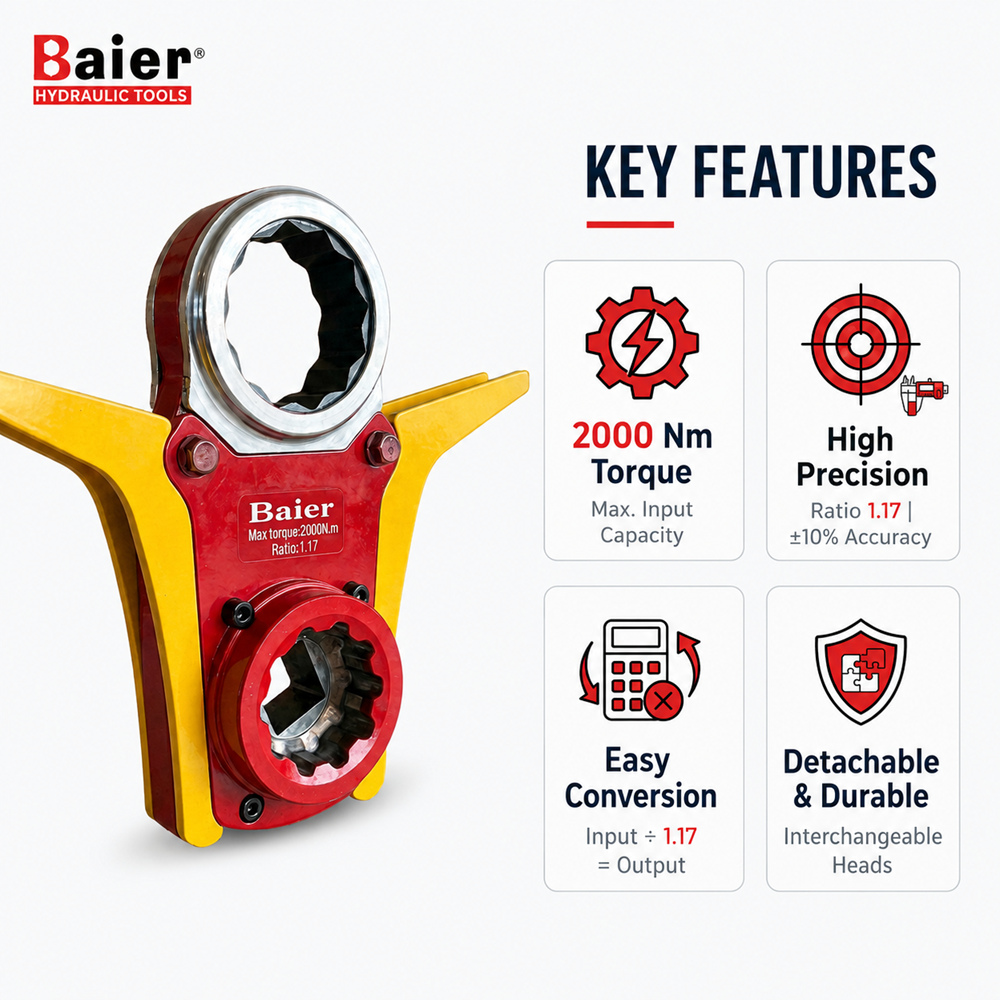

Key Features of the BROL Offset Gearbox

Built for restricted-access industrial bolting, the BROL system combines a maximum permitted input torque of 2000 Nm with a defined 1.17 torque conversion ratio. Its detachable construction allows different working heads to be fitted according to the required nut size.

Key Features

2000 Nm Input Capacity
Maximum permitted input torque for all listed configurations.

1.17 Conversion Ratio
Defined torque conversion for input and output settings.

Specified Torque Accuracy
Stated torque accuracy of ±10%.

Detachable Working Heads
Interchangeable heads for different nut sizes and installation conditions.

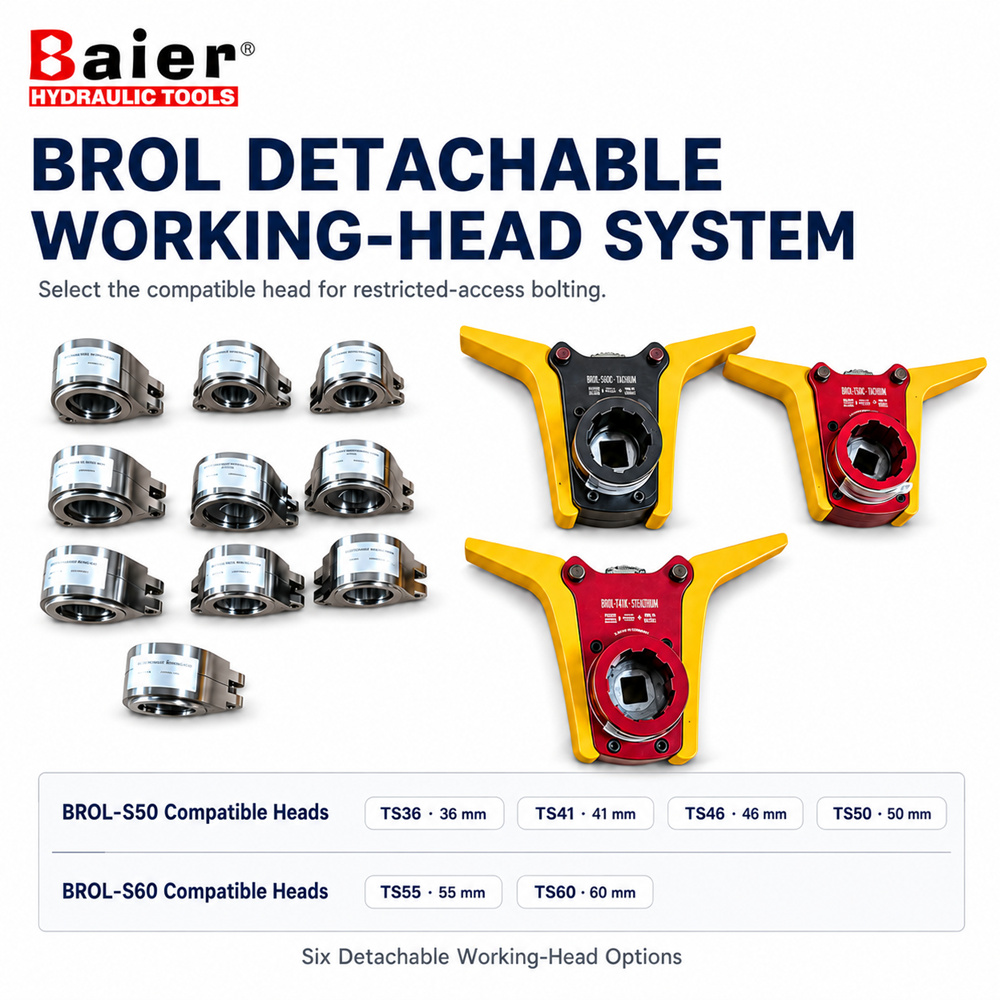

Choose the Correct Interchangeable Working Head

Select the working head according to the nut across-flats dimension. The BROL-S50 gearbox body accepts four working-head sizes, while the BROL-S60 body accepts two larger working heads.

Selection Guide

Please provide the nut AF size, required output torque, wrench model, square-drive size and available clearance when requesting model selection.

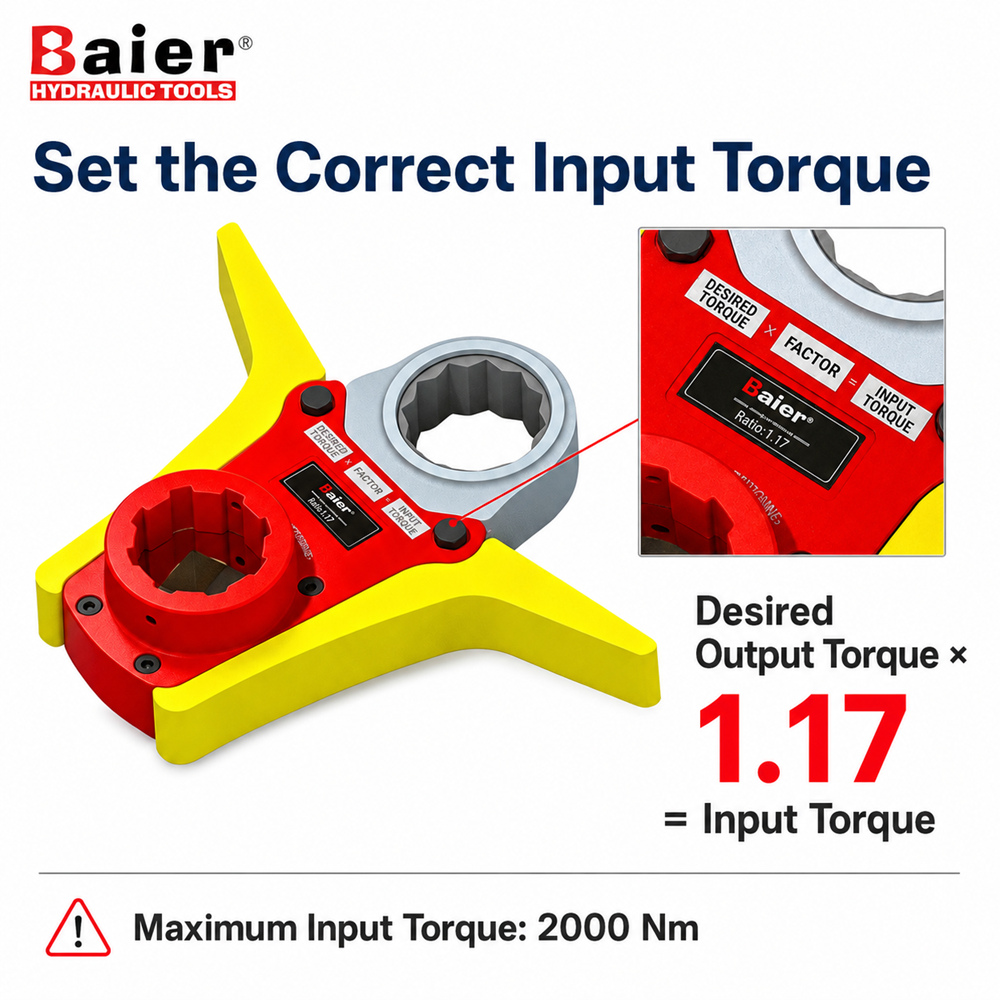

How to Set the Correct Input Torque

Because torque passes through the offset gearbox, the torque wrench input setting must be calculated using the 1.17 conversion ratio.

Formula:

Input Torque = Desired Output Torque × 1.17

Output Torque = Input Torque ÷ 1.17

For example:

For a desired output torque of 1000 Nm:

1000 Nm × 1.17 = 1170 Nm Input Torque

Set the compatible torque wrench to 1170 Nm to obtain the required 1000 Nm output torque under the specified conversion conditions.

Safety Note

Never exceed the maximum permitted input torque of 2000 Nm.

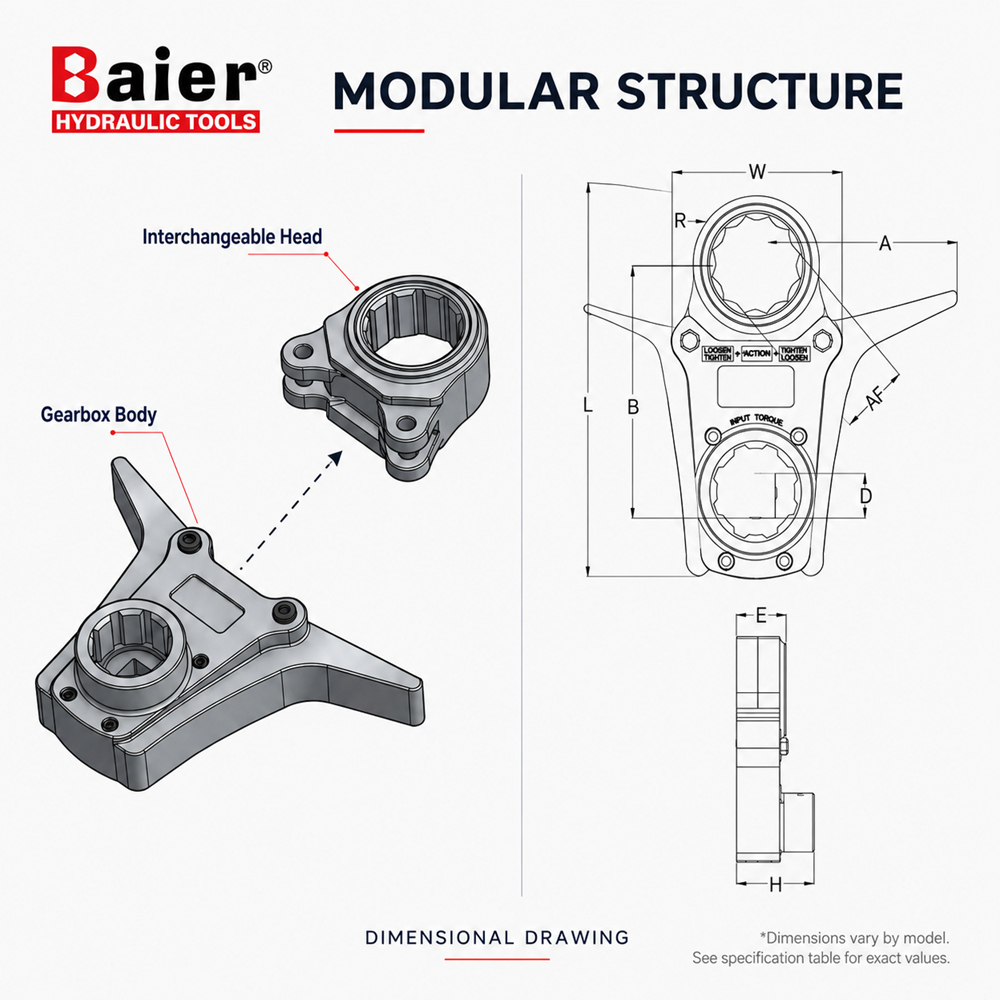

Detachable Structure and Dimensional Information

The BROL Offset Gearbox consists of a gearbox body and a detachable working head. This modular construction allows the appropriate working head to be selected and replaced according to the nut size and available installation space.

Overall dimensions vary by gearbox body and working-head configuration. Confirm dimensions W, R, A, L, B, AF, D, E and H before ordering.

Specification

Need Help Selecting the Correct BROL Configuration?

Send us your nut AF size, required output torque, torque wrench model, square-drive size and available installation clearance. Baier will recommend the appropriate gearbox body and working-head configuration.

Factory Support for Global Industrial Buyers

Baier supports global buyers with model selection, system matching, spare parts supply, after-sales service and OEM or distributor cooperation.

• Model Selection Support

• 12-Month Warranty

• Spare Parts Available

• OEM & Distributor Cooperation

FAQ

Is the BROL a complete torque wrench?

No. The BROL is an offset gearbox attachment used with a compatible electric or cordless torque wrench.

How do I select the correct working head?

Select the working head according to the nut across-flats size and confirm that sufficient installation clearance is available.

How is the input torque calculated?

Multiply the desired output torque by 1.17. Never exceed the maximum permitted input torque of 2000 Nm.

Can one gearbox body use different working heads?

Yes. BROL-S50 supports 36, 41, 46 and 50 mm heads. BROL-S60 supports 55 and 60 mm heads.
