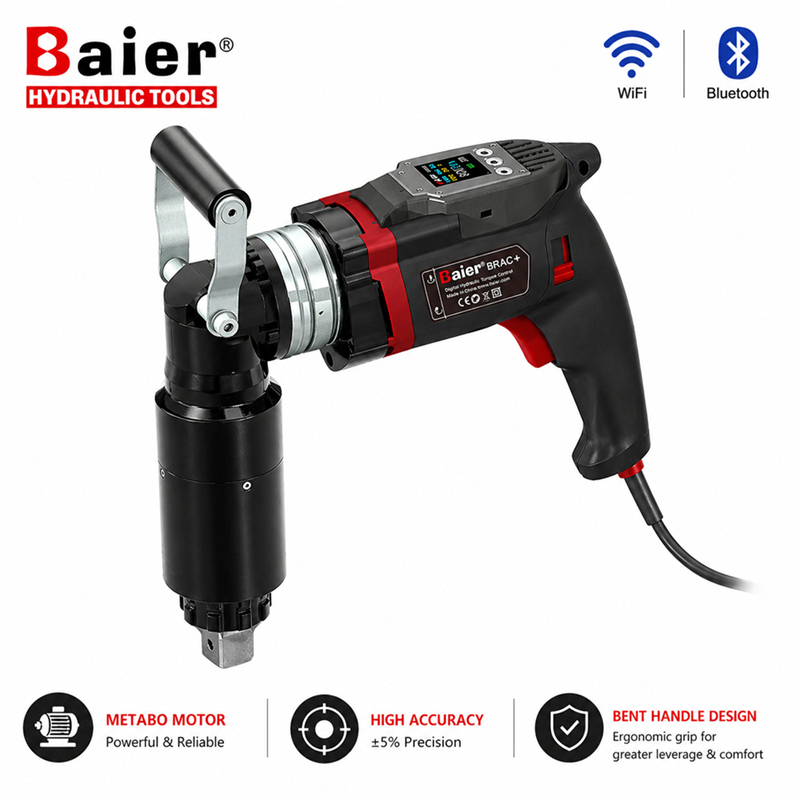

The Baier BRAC-A2500 provides a robust 400-2500Nm bolting solution with a 1" drive. Built with a Grade 6 high-strength gear system, this angled electric wrench is engineered for heavy metallurgy and equipment assembly. The plug-in design eliminates battery downtime, ensuring continuous productivity in harsh factory environments.
High-Performance Angled Electric Torque Wrench Supplier: B2B Industrial Bolting Solutions
As a leading flagship solution for high-end industrial markets in Europe, North America, and Australia, the Baier BRAC-A Series Angled Plug-in Electric Torque Wrench is engineered to drive repeat business for heavy-industry distributors.
Powered by an original German Metabo drive system, this series achieves a perfect balance between strict CE safety compliance and unparalleled industrial durability. It is purpose-built for high-intensity environments, including wind power maintenance, petrochemical projects, and heavy infrastructure, serving as a high-margin growth engine for premium industrial tool portfolios.
[Core Selling Points]
A. German Metabo Engine Guarantee:
Equipped with original imported Metabo brushless motors and core electronic control systems. This premium brand endorsement significantly reduces after-sales maintenance rates and builds immediate trust with demanding industrial clients.
B. Uninterrupted Power Supply:
The AC plug-in design is purpose-built for multi-shift, high-intensity continuous operations. By eliminating battery degradation and mid-task power failure, you help your clients maximize project uptime and efficiency.
C. Angled Design for Confined Spaces:
A highly competitive right-angle structure that solves the pain point of restricted access in wind turbine towers and tight factory layouts where straight tools fail. This opens new sales channels in specialized industrial niches.
D. Self-Developed Grade 6 Precision Gears:
The core transmission features Baier’s proprietary Grade 6 Precision Gearing. Even across the massive 100–10,000 Nm range, it maintains extreme wear resistance and impact stability for heavy-duty limits.
E. Global Compliance & Rapid Supply Chain:
Fully certified with CE and other international standards to meet market entry requirements in the West. With a robust supply network, we offer fast lead times and OEM/ODM services to ensure your inventory security.
Reaction Arm:
Trunk Type
Z type
Double Arm Type
Four Points Type
Deep Sleeve Type
Parts Included:
Torque Gun
Power Adapter
Reaction Arm
USB Cable
Tool Case
Information Displayed On The Screen
The digital display screen will display the brand name of the wrench, current time, job number, bolt number, wrench operation mode, motor temperature, real-time output torque, and menu.
There are three buttons below the screen to enter the settings interface. In the settings interface, you can view wrench working records, revise the displayed torque unit, change language, change the direction of text on the screen, modify system settings, switch to torque calibration mode, and so on.
Dimensional Drawing:
Specification Table:
Model
Square Drive
(inch)
Torque
Unload Speed
(rpm)
Weight
(kg)
Size A
(mm)
Size B
(mm)
Size C
(mm)
Size D
(mm)
Nm
ft.lb
BRAC-A700
3/4
100-700
73-516
20
6
260
66
75
225
BRAC-A1400
1
200-1400
147-1032
10
6.8
260
77
75
265
BRAC-A2500
1
400-2500
295-1844
7.5
6.8
260
77
75
265
BRAC-A4000
1 or 1 1/2
600-4000
442-2950
4
10
260
92
75
315
BRAC-A5000
1 1/2
800-5000
590-3688
3.5
13.5
260
102
75
345
BRAC-A6000
1 1/2
900-6000
663-4425
3
14.2
260
110
75
350
BRAC-A8000
1 1/2
1200-8000
885-5900
2
15.7
260
110
75
365
BRAC-A10000
1 1/2
1500-10000
1106-7376
1.5
19
260
125
75
380
*The commonly used torque in work should be less than 80% of the maximum torque of the wrench.
How to choose and maintain an electric torque wrench?
1. The tightening torque of the bolt is 80% of its yield limit, and the dismantling torque is 1.5-2.5 times the tightening torque. Based on the bolt specifications and strength grade, first determine the torque range that needs to be used.
2. The commonly used torque (rated torque) of a wrench should be less than 80% of its maximum torque value to ensure the optimal operating state of the wrench.
3. Choose the appropriate bolt sleeve according to the different bolt sizes.
4. Select or customize a suitable reaction force arm according to the operating conditions.
5. This product is not waterproof, please do not use it on rainy days or underwater.
6. The wrench should be properly stored after use, and should be recalibrated after maintenance or use for more than six months.
After Sales Service:
1. Free replacement of torque wrench component and new product if it's demaged or broken because of supplier's responsibility. 2. We promise 12 months warranty time after delivery. 3. Online guidence of operation, reparing, setting when clients need help. 4. Help to explore the local market with contracted dealer. 5. When it beyond warranty time, we still provide companents and technical support. 6. Total engineering solution with complex hydraulic tools combined action.
Baier Hydraulic Power (Wuhan) Co. Ltd is a high-technology enterprise, the company has been keenly focused on integrating research, development, production, sale and service of torque wrench, hydraulic cylinders, nut cutter, hydraulic pullers, hydraulic pumps, and so on. We own a modern production plant of 12, 000 square meters, this incorporates an internationally advanced hydraulic tools production facility, material processing line, tools assembly line, and other packaging equipment facilities.
