For extreme engineering challenges, the Baier BRAC-A8000 offers an impressive 1200-8000Nm range. This plug-in angled electric wrench is the ultimate tool for offshore platforms and heavy infrastructure, combining ±5% calibration accuracy with a 6-stage precision gear train for maximum torque density.
The Ultimate Problem Solver for Confined Space Fastening in Heavy Industry
Struggling with confined space fastening in petrochemical piping or wind energy nacelles? The Baier BRAC-A Series is designed to solve the conflict between narrow clearances and high-torque demands. As a specialized angled plug-in torque wrench, it eliminates the downtime of battery swaps and the bulk of straight-handle tools, making it the go-to solution for metallurgy, bridge engineering, and power plant maintenance. Engineered to withstand the extreme vibrations and dust of harsh industrial environments, this series ensures that heavy-duty bolting remains consistent, safe, and efficient, regardless of site complexity.
Why Choose Baier BRAC-A for Restricted Industrial Workspaces?
A. Master of Tight Clearances:
The unique angled structure allows the tool to penetrate dense petrochemical flange areas and bridge steel structures, solving the "no-access" issues common with traditional straight wrenches.
B. Unstoppable Continuous Workflow:
The plug-in design ensures that during large-scale metallurgy assembly or long-distance flange fastening, work never stops for battery swaps, keeping your project schedule on track.
C. Metabo-Driven Reliability:
Built with original German Metabo internals to withstand harsh outdoor dust and extreme temperature fluctuations, ensuring reliability on the most rugged construction sites.
D. Heavy-Duty Grade 6 Gearing:
Featuring specialized high-precision gears reinforced for heavy-load impacts. It remains resilient even after years of handling high-strength, large-specification bolting in punishing environments.
E. Complete Industrial Spectrum:
From 100 Nm for light utility maintenance to 10,000 Nm for heavy infrastructure locking, the BRAC-A series provides a true one-stop fastening solution for global heavy industry.
Reaction Arm:
Trunk Type
Z type
Double Arm Type
Four Points Type
Deep Sleeve Type

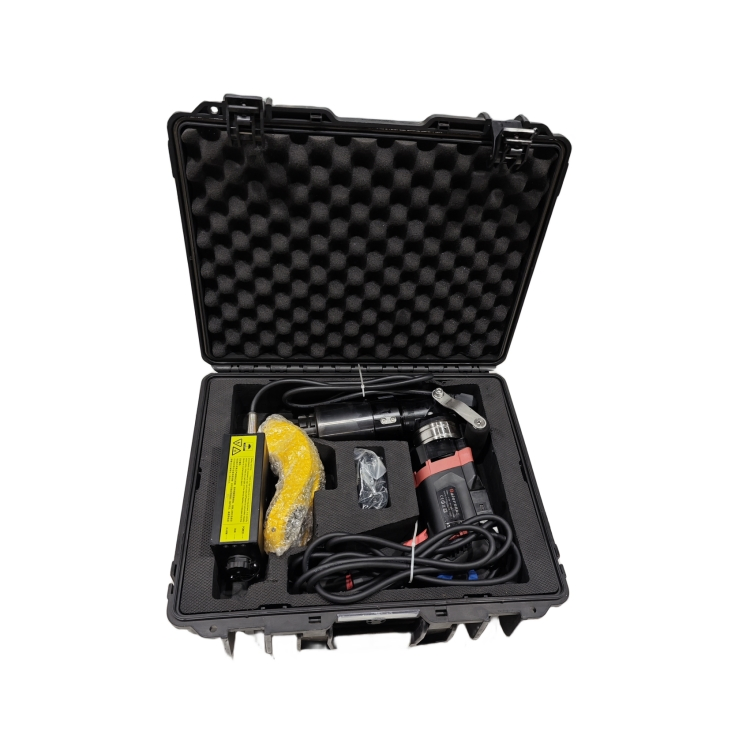

Parts Included:
Torque Gun
Power Adapter
Reaction Arm
USB Cable
Tool Case
Information Displayed On The Screen
The digital display screen will display the brand name of the wrench, current time, job number, bolt number, wrench operation mode, motor temperature, real-time output torque, and menu.
There are three buttons below the screen to enter the settings interface. In the settings interface, you can view wrench working records, revise the displayed torque unit, change language, change the direction of text on the screen, modify system settings, switch to torque calibration mode, and so on.

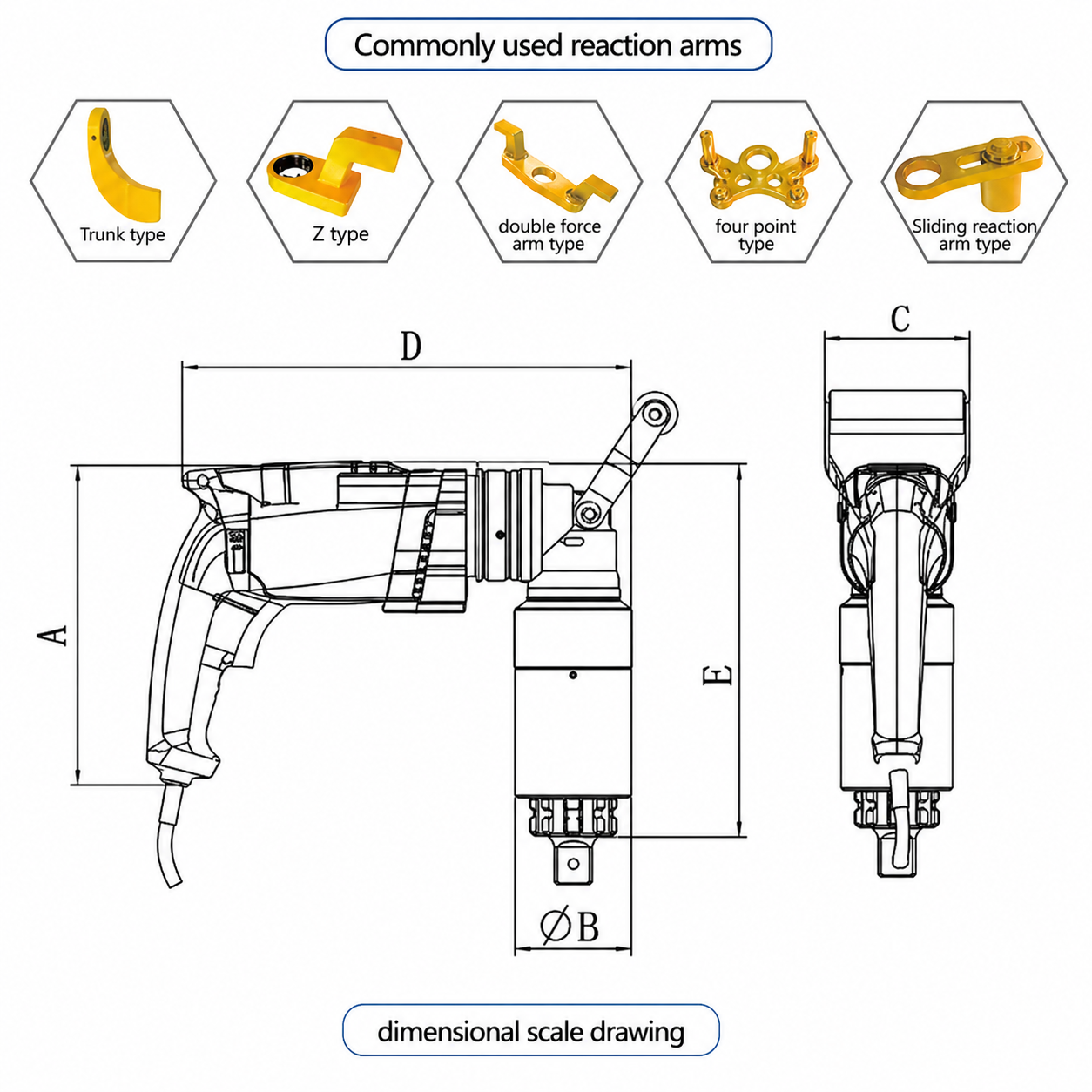

Dimensional Drawing:
Specification Table:
Model
Square Drive
(inch)
Torque
Unload Speed
(rpm)
Weight
(kg)
Size A
(mm)
Size B
(mm)
Size C
(mm)
Size D
(mm)
Nm
ft.lb
BRAC-A700
3/4
100-700
73-516
20
6
260
66
75
225
BRAC-A1400
1
200-1400
147-1032
10
6.8
260
77
75
265
BRAC-A2500
1
400-2500
295-1844
7.5
6.8
260
77
75
265
BRAC-A4000
1 or 1 1/2
600-4000
442-2950
4
10
260
92
75
315
BRAC-A5000
1 1/2
800-5000
590-3688
3.5
13.5
260
102
75
345
BRAC-A6000
1 1/2
900-6000
663-4425
3
14.2
260
110
75
350
BRAC-A8000
1 1/2
1200-8000
885-5900
2
15.7
260
110
75
365
BRAC-A10000
1 1/2
1500-10000
1106-7376
1.5
19
260
125
75
380
*The commonly used torque in work should be less than 80% of the maximum torque of the wrench.
How to choose and maintain an electric torque wrench?
1. The tightening torque of the bolt is 80% of its yield limit, and the dismantling torque is 1.5-2.5 times the tightening torque. Based on the bolt specifications and strength grade, first determine the torque range that needs to be used.
2. The commonly used torque (rated torque) of a wrench should be less than 80% of its maximum torque value to ensure the optimal operating state of the wrench.
3. Choose the appropriate bolt sleeve according to the different bolt sizes.
4. Select or customize a suitable reaction force arm according to the operating conditions.
5. This product is not waterproof, please do not use it on rainy days or underwater.
6. The wrench should be properly stored after use, and should be recalibrated after maintenance or use for more than six months.
After Sales Service:
1. Free replacement of torque wrench component and new product if it's demaged or broken because of supplier's responsibility. 2. We promise 12 months warranty time after delivery. 3. Online guidence of operation, reparing, setting when clients need help. 4. Help to explore the local market with contracted dealer. 5. When it beyond warranty time, we still provide companents and technical support. 6. Total engineering solution with complex hydraulic tools combined action.
Baier Hydraulic Power (Wuhan) Co. Ltd is a high-technology enterprise, the company has been keenly focused on integrating research, development, production, sale and service of torque wrench, hydraulic cylinders, nut cutter, hydraulic pullers, hydraulic pumps, and so on. We own a modern production plant of 12, 000 square meters, this incorporates an internationally advanced hydraulic tools production facility, material processing line, tools assembly line, and other packaging equipment facilities.
