HP Series
Baier
8413190000
Product Description

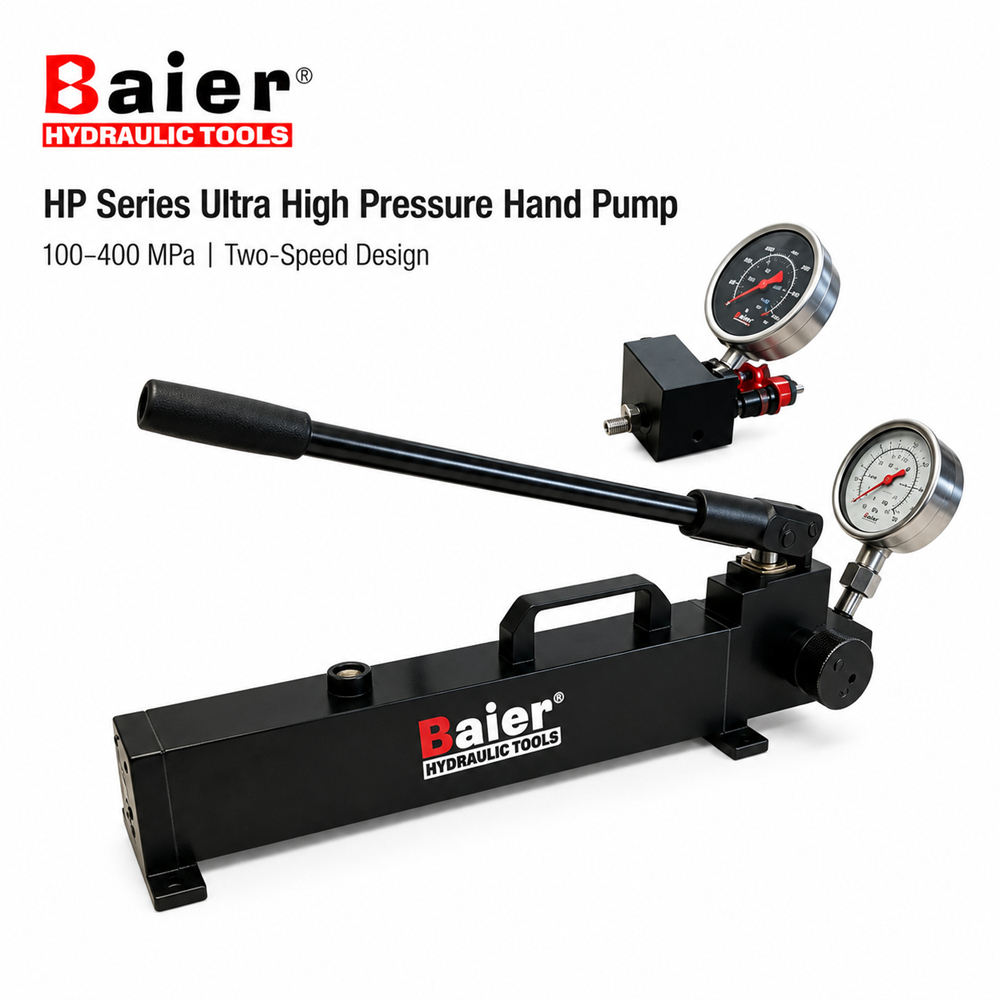

The Baier HP Series Ultra High Pressure Hydraulic Hand Pump provides manual hydraulic power for pressure-matched industrial tools and systems.
The series includes HP-100, HP-150, HP-200, HP-280 and HP-400, allowing buyers to select the correct maximum pressure according to the connected tool, hose, pressure gauge, couplers and fittings.
No electric or pneumatic power source is required, making the HP Series suitable for workshop maintenance and remote industrial operations.

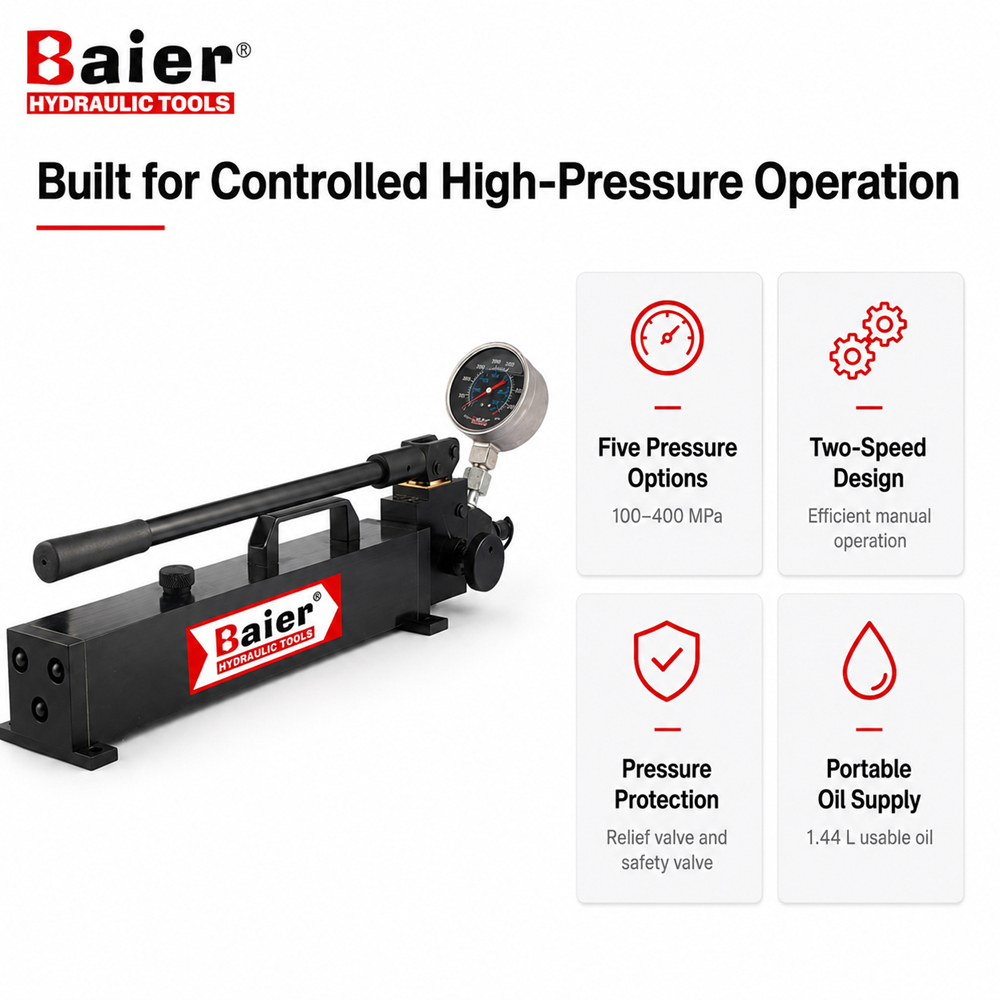

Five models provide maximum pressure limits of 100 MPa, 150 MPa, 200 MPa, 280 MPa and 400 MPa.
The low-pressure stage provides 32 cm3/stroke for faster initial oil delivery. High-pressure oil displacement ranges from 0.9 to 2.5 cm3/stroke depending on the selected model.
The relief valve allows the pressure setting to be adjusted according to the connected hydraulic tool and operating requirement.
The integrated safety valve supports overload protection for the pump and correctly configured hydraulic system.
A usable oil capacity of 1.44 L supports a range of compatible industrial hydraulic tools.
Manual operation eliminates the need for electricity or compressed air, supporting workshop and field maintenance.

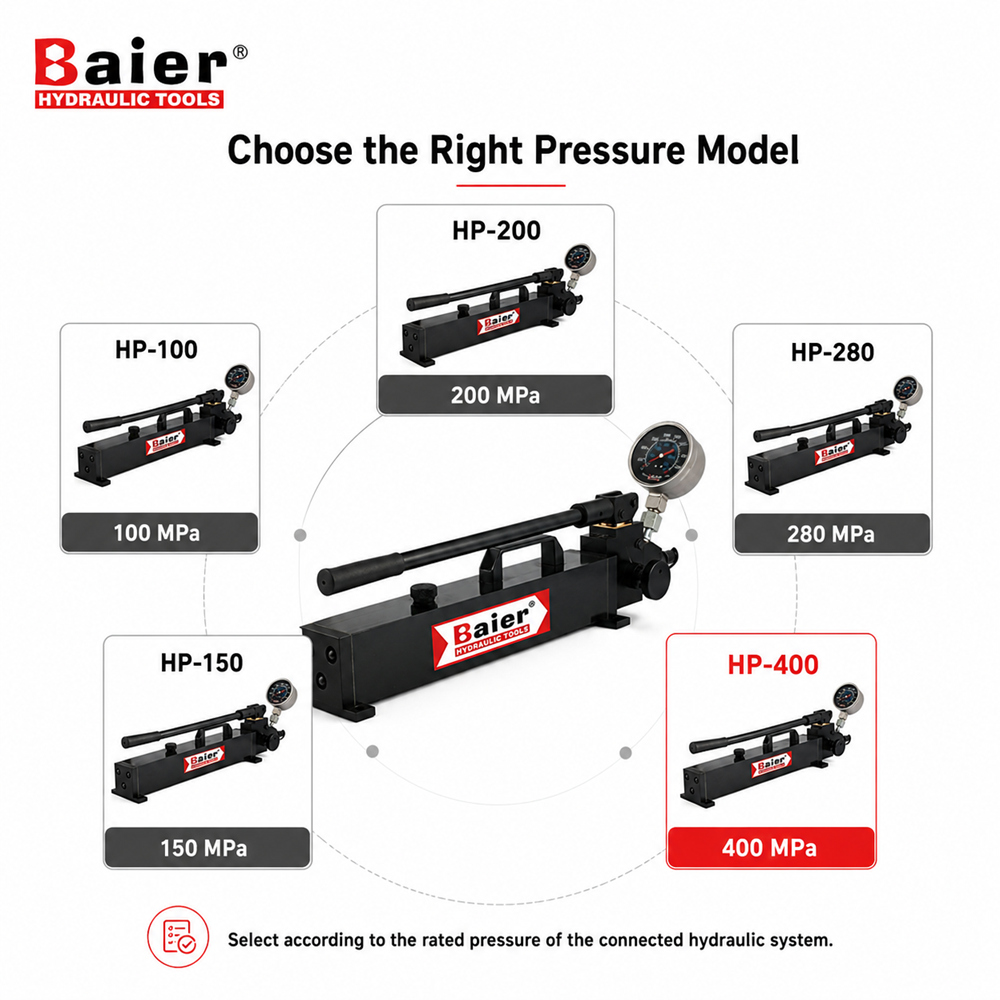

| Model | Maximum Pressure | Pressure Equivalent |
|---|---|---|
| HP-100 | 100 MPa | 1000 bar |
| HP-150 | 150 MPa | 1500 bar |
| HP-200 | 200 MPa | 2000 bar |
| HP-280 | 280 MPa | 2800 bar |
| HP-400 | 400 MPa | 4000 bar |
| Specification | HP Series |
|---|---|
| Product Type | Ultra High Pressure Hydraulic Hand Pump |
| Available Models | HP-100 / HP-150 / HP-200 / HP-280 / HP-400 |
| Maximum Pressure Range | 100–400 MPa |
| Pump Design | Two-Speed Manual Pump |
| Low-Pressure Oil Displacement | 32 cm3/stroke |
| High-Pressure Oil Displacement | 0.9–2.5 cm3/stroke |
| Usable Oil Capacity | 1.44 L |
| Pressure Adjustment | Adjustable Relief Valve |
| Safety Protection | Built-In Safety Valve |
| Power Source | Manual / Hand-Operated |
| Warranty | 12 Months |
High-pressure oil displacement, dimensions, weight and outlet configuration vary by model. Please confirm the selected model data before ordering.

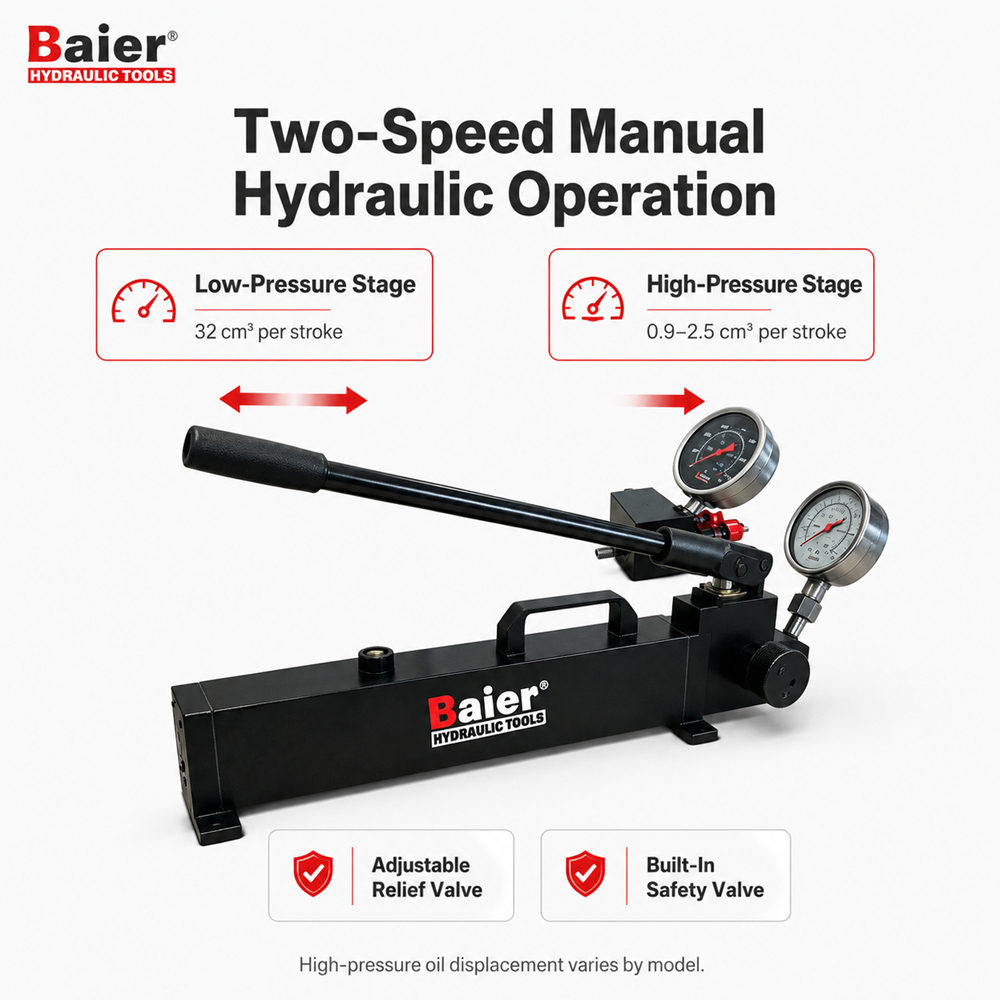

During the initial stage, the pump provides higher oil displacement for faster tool positioning and system filling.
As system pressure increases, the high-pressure stage provides lower oil displacement for controlled pressure build-up.

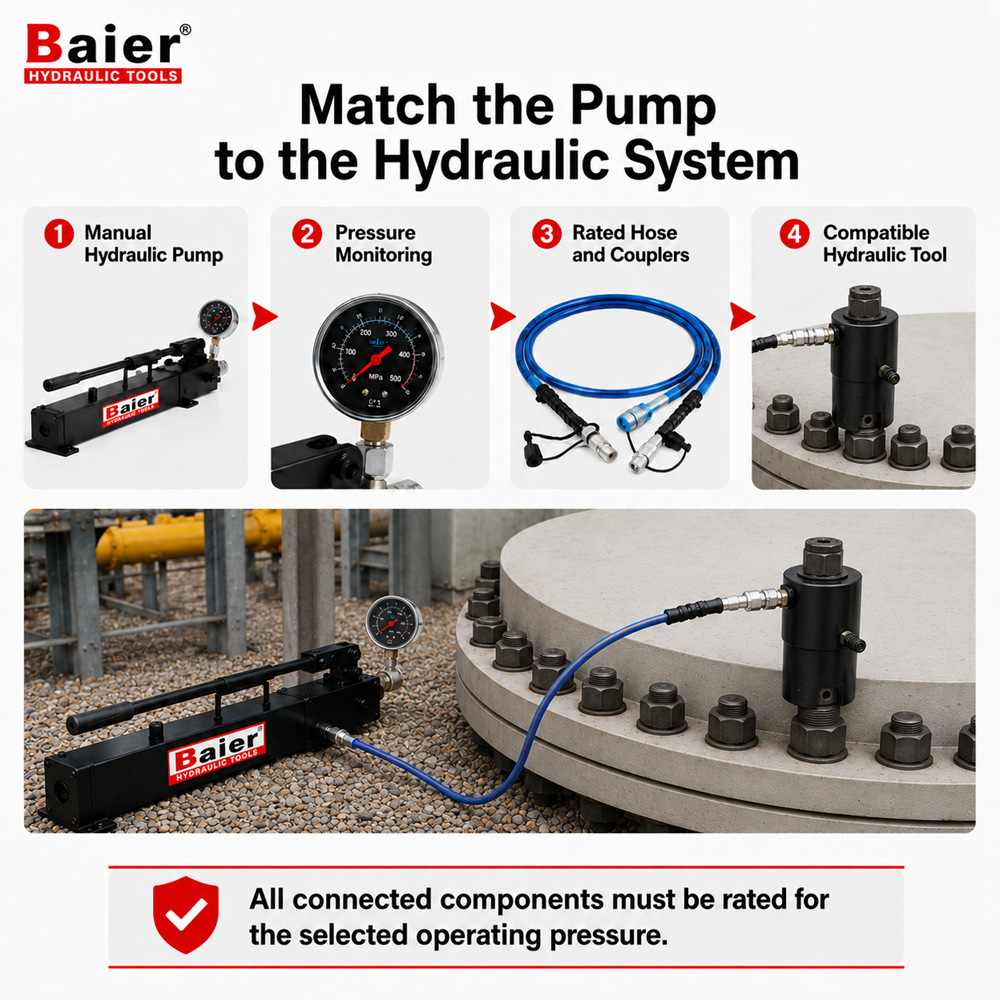

A correctly configured system may include:
HP Series manual hydraulic pump
Pressure-matched hydraulic gauge
Correctly rated high-pressure hose
Compatible couplers and fittings
Compatible hydraulic tool
All pumps, gauges, hoses, couplers, fittings and hydraulic tools must be rated for the intended operating pressure.
The operating pressure must not exceed the rating of the lowest-rated component in the complete hydraulic system.
The HP Series can support correctly selected hydraulic systems used in:
Hydraulic bolt tensioning
Mining equipment maintenance
Hydropower equipment maintenance
Heavy machinery assembly and service
Petrochemical plant maintenance
Shipbuilding and port equipment
Industrial pressure supply
Remote field hydraulic operations
20 Years R&D
15,000 m² Production Base
3,000+ Global Clients
12-Month Warranty
Model Selection | System Matching | Quality Inspection | After-Sales Support
Send us the required operating pressure, connected hydraulic tool, usable oil requirement, hose and coupler rating, and outlet configuration. Baier will help evaluate the appropriate pump model and system components.
The series includes HP-100, HP-150, HP-200, HP-280 and HP-400, covering maximum pressure limits from 100 to 400 MPa.
No. It is the maximum pressure limit of the selected pump. Actual operating pressure must be determined by the connected tool and the lowest-rated system component.
Confirm the required operating pressure, oil volume, connected tool, hose and coupler ratings, outlet interface and working conditions before selecting a model.
The low-pressure stage provides 32 cm3/stroke for faster initial oil delivery. The high-pressure stage provides 0.9–2.5 cm3/stroke, depending on the model, for controlled pressure build-up.
No. The pumps are manually operated and require no external electric or pneumatic power source.
Yes, when the selected pump, pressure gauge, hose, couplers and bolt tensioner are correctly matched for pressure, oil capacity and interface.
The supplied configuration should be confirmed according to the selected model, required pressure and connected hydraulic tool.
Baier provides a 12-month warranty. The detailed warranty scope follows the confirmed sales contract and operating instructions.
