Choosing the most powerful wrench rarely guarantees the best bolting result. A tool may deliver enough torque yet fail inside a narrow flange. The right Hydraulic Torque Wrench must match torque demand, nut size, clearance, reaction space, and pump pressure. This guide explains each selection step and helps you avoid costly sizing mistakes.
● Select the tool from the joint requirements, not from maximum torque alone.
● Confirm tightening torque, possible breakout torque, bolt grade, and nut size before comparing models.
● Keep normal working torque comfortably below maximum capacity. This supports stable operation and leaves useful reserve.
● Choose a square-drive design for socket flexibility. Choose a low-profile cassette when nearby structures restrict access.
● Measure overhead clearance, side clearance, tool radius, and the available reaction surface.
● Match the wrench, pump, hoses, couplings, sockets, and cassettes as one complete system.
● Check accuracy, calibration support, spare parts, and service before purchasing.
● A Hydraulic Torque Wrench should also suit work frequency, site conditions, operator handling, and maintenance plans.
● Share joint drawings, photographs, torque values, and dimensions when the application is difficult.
A reliable selection process starts at the bolted joint. Before reviewing products, collect the engineering and site information below. This prevents a common mistake: buying enough torque without confirming whether the tool can reach, react, or fit.
Use the approved value from the equipment maker, engineering drawing, maintenance procedure, or project specification. Do not estimate torque from bolt diameter alone. Bolt grade, thread pitch, coating, lubrication, gasket behavior, and joint design can change the requirement.
The wrench must cover every planned value without operating near its limit during routine work. The reviewed product guidance recommends keeping commonly used torque below 80% of maximum capacity. This creates useful reserve and supports efficient operation.
Maintenance removal may require more force than installation. Corrosion, thermal cycling, damaged threads, and long service periods can raise breakout demand. The reviewed guidance suggests dismantling torque may reach 1.5 to 2.5 times tightening torque. Use this only as a planning reference because actual joint conditions vary.
Record the nut’s across-flats dimension, bolt diameter, thread type, and strength grade. A nominal bolt size does not always reveal the correct socket or cassette.
Check whether one tool must handle several fastener sizes. A square-drive wrench can use different sockets or reduction sleeves. A cassette design usually needs a matching hex link or working head for each nut size.
Measure above and beside the nut, around the reaction area, and along the tool’s movement path. Pipes, flange edges, guards, structural steel, or nearby bolts may block a standard wrench.
Request a dimensional drawing. Compare head width, nose radius, tool height, socket height, and reaction-arm reach against the real joint. A measured sketch is more reliable than a photograph alone.
Every hydraulic torque tool needs a solid reaction surface. It must transfer force without slipping, twisting the tool, or damaging nearby equipment. Avoid narrow edges, angled contact, loose parts, and fragile surfaces.
Some low-clearance tools support customized extended reaction arms. This helps when the nearest stable surface sits farther from the fastener.
Consider dust, moisture, temperature, salt exposure, confined access, falling hazards, and site power limits. Also review lifting needs when operators must position a heavy tool repeatedly.
Tip：Send a joint drawing and site photo before ordering for restricted-access work.
The hydraulic torque wrench range includes several configurations because no single head design solves every bolting problem. Workspace and fastener layout should determine the most practical form.
Choose a square-drive tool when enough space exists for the wrench body and socket. It provides flexibility across different nut sizes because operators can change sockets or use a suitable reduction sleeve.
A current rotatable hydraulic torque wrench configuration supports bidirectional operation, a reduction-sleeve option, and flexible oil-pipe movement. Its listed specifications include ±3% accuracy, a 1,724–17,926 Nm range, and compatibility with 65–115 mm bolts.

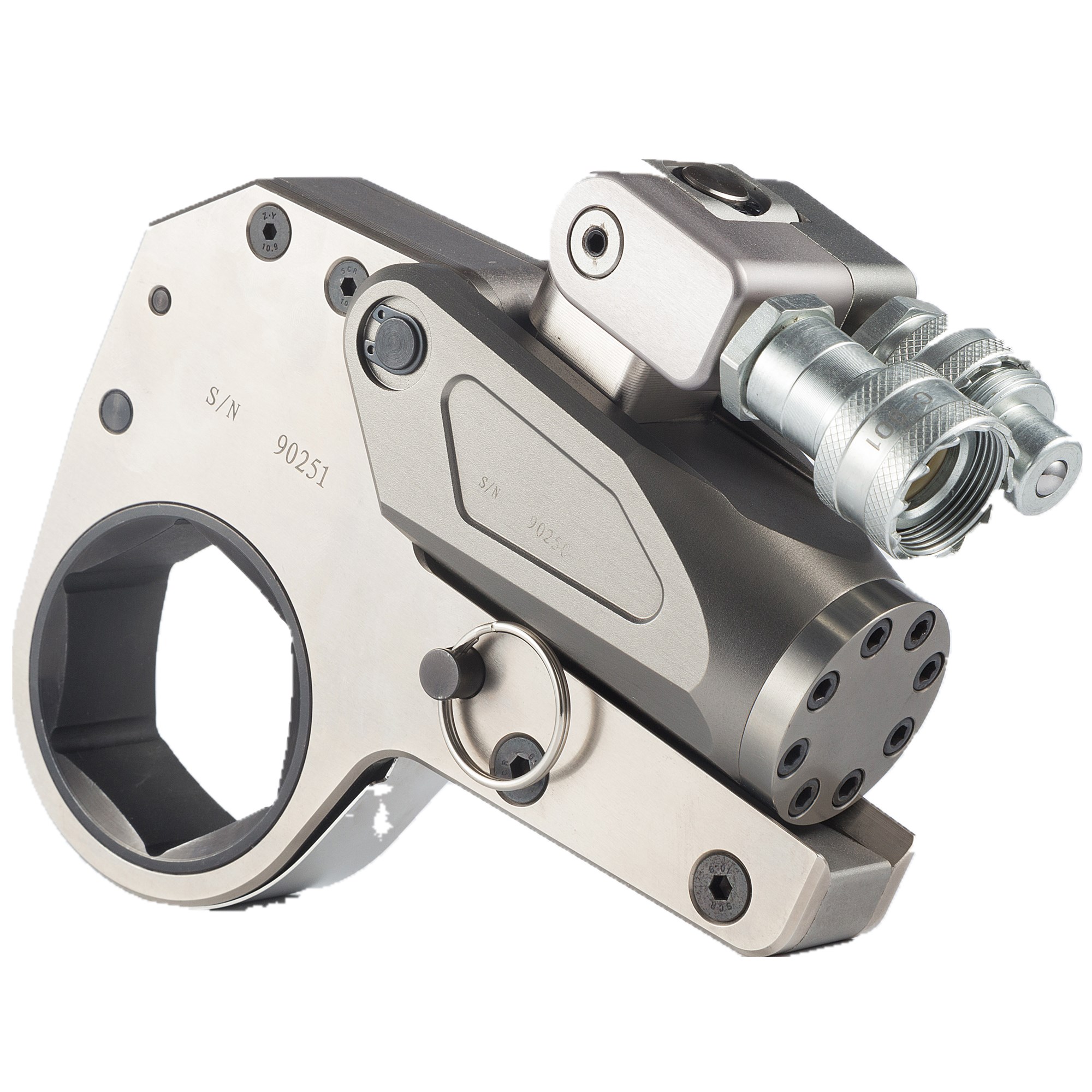

Choose a cassette tool when overhead or side clearance is limited. Its hollow working head fits directly around the nut, removing the extra height required by a conventional socket.

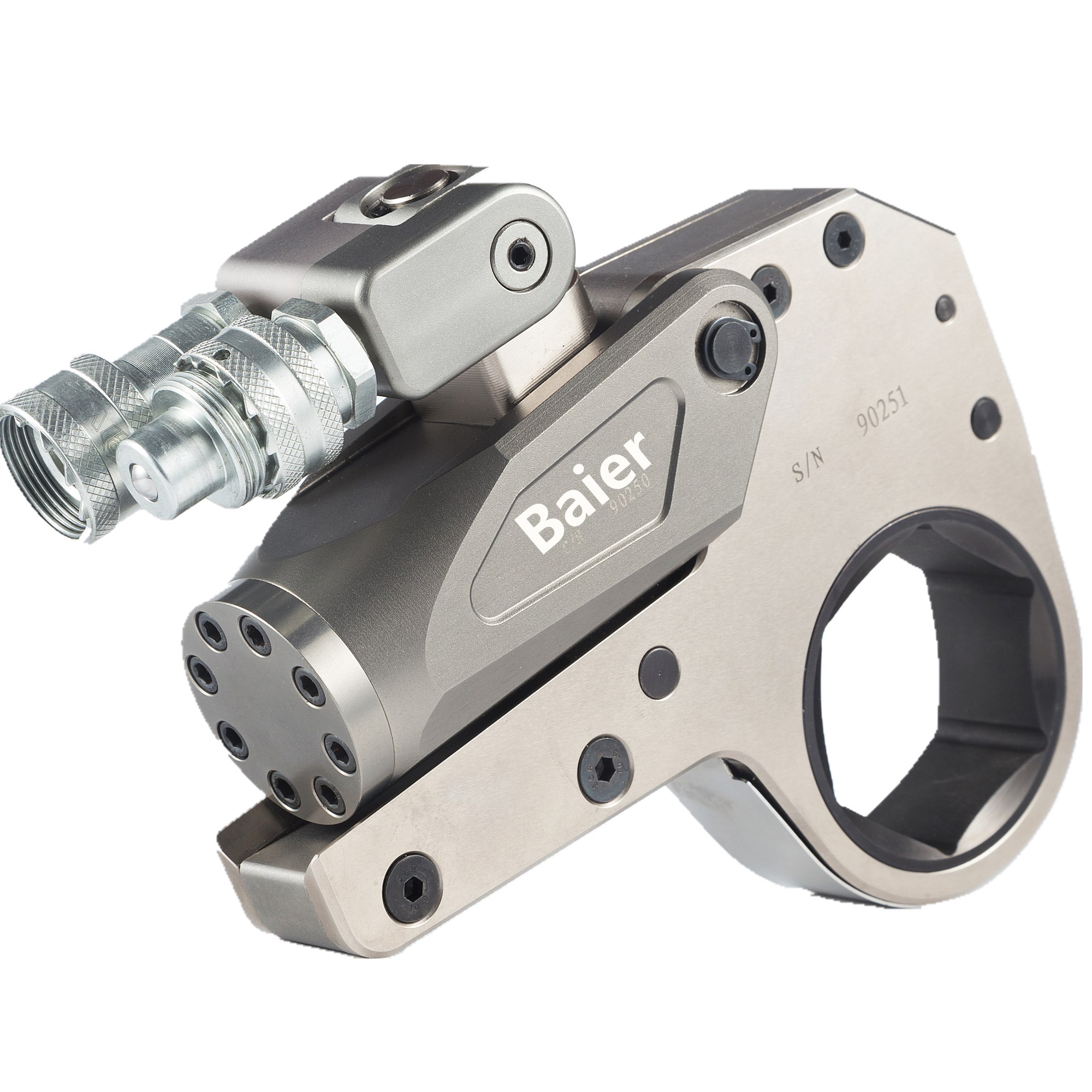

The reviewed low-profile hydraulic torque wrench uses separate power and cassette heads. It offers direct nut engagement, optional extended reaction support, and a listed 232–44,593 Nm range across the series.
Selection factor | Square-drive design | Low-profile cassette design |
Best access | Open space around the nut | Restricted overhead or side space |
Size changes | Replace sockets | Replace cassette or hex link |
Main strength | Broad versatility | Compact access |
Key concern | Socket height and tool radius | Correct cassette and reaction position |
Note：Verify the complete working radius; a compact head can still need reaction space.
Torque capacity attracts attention, but usable range matters more. The tool should cover the lowest routine value, the highest tightening value, and any justified removal reserve.
Avoid selecting a wrench whose normal target sits at maximum output. A margin reduces overload risk and gives the system room for pressure variation. For the reviewed low-profile range, commonly used torque should remain below 80% of maximum capacity.
An oversized unit is not automatically safer. It may be heavier, harder to position, and less practical at lower values. Compare minimum and maximum output together.
Critical flanges and structural joints may require documented torque control. Confirm stated accuracy, calibration methods, certificate availability, and recalibration intervals.
The two reviewed configurations list ±3% accuracy. The low-profile design also carries a pressure-to-torque comparison table on its cover plate. This helps connect pump pressure to output, but it does not replace an approved procedure or valid calibration.
Build a torque list before requesting a quotation. Include routine tightening, maximum tightening, likely loosening, and future asset needs. Then select a practical range covering those tasks without creating unnecessary size or weight.
A hydraulic wrench cannot perform correctly as an isolated tool. The pump, hoses, couplings, pressure settings, and controls must form a compatible system.
Check the required pressure range and maximum pressure. The reviewed low-profile series operates from 70 to 700 bar, with 700 bar listed as maximum working pressure. Never connect a tool to a pump that can exceed its approved limit without proper control.
Pressure determines torque, while flow affects cycle speed. Repetitive flange work may benefit from faster cycling, but speed must not reduce safe positioning.
Confirm hose pressure ratings, coupling type, length, protective caps, and connection direction. Hoses should reach the joint without stretching, sharp bends, pinching, or contact with the reaction zone.
The reviewed tools list flexible swivel arrangements of 360° × 180° and 360° × 300°. They improve positioning, but operators must still route hoses safely.
Decide whether one wrench or several synchronized tools will use the pump. Consider remote control, available power, cycle frequency, and site restrictions.
Tip：Purchase a verified wrench-and-pump system unless compatibility is already documented.
A tool may meet the torque target yet perform poorly during a long shutdown. Weight, balance, durability, and service access affect daily productivity.
Look for a useful power-to-weight ratio. The reviewed tools use aluminum-titanium alloy construction to balance strength and handling. One rotatable configuration weighs 16.5 kg while delivering up to 17,926 Nm.
Weight matters during overhead, vertical, or repetitive work. Use lifting aids for heavy units instead of relying on repeated manual placement.
Check grip design, swivel movement, direction changes, head replacement, socket retention, reaction adjustment, and hose position. Bidirectional operation can simplify tightening and loosening. Non-impact, low-noise operation may also improve the work area.
A detachable power head can work with several cassette sizes. This may simplify transport and reduce the need for separate complete tools.
Ask how often seals, ratchets, couplings, hoses, and reaction parts need inspection. Confirm spare-part availability and repair support.
Recheck calibration after repair, overload, abnormal output, or extended service. Store the tool clean, depressurized, and protected.
The final choice should reflect total application fit. Use this checklist when comparing quotations.
● Tightening torque and possible breakout torque
● Bolt grade, diameter, thread, and nut size
● Joint drawing and measured clearances
● Available reaction surface
● Work frequency and operating conditions
● Wrench type and usable torque range
● Socket, cassette, or reduction-sleeve sizes
● Reaction arm or custom reaction solution
● Pump pressure, flow, power source, and controls
● Hose length, rating, couplings, and swivel movement
● Dimensional drawings and selection help
● Calibration documents and pressure-to-torque charts
● Spare seals, ratchets, hoses, and couplings
● Repair, maintenance, and customization services
Compare the complete package rather than wrench price alone. A lower quote may exclude the pump, correct head, reaction accessory, or calibration support. Missing components can delay commissioning and raise total cost.
Choosing the right tool starts with torque, access, reaction space, and pump compatibility. Baier offers strong, lightweight Hydraulic Torque Wrench options, including compact cassette and flexible rotatable designs. Their accurate output, adaptable connections, and application support help users improve bolting control and select a practical system.
A: A Hydraulic Torque Wrench applies controlled turning force through hydraulic pressure.
A: Match the Hydraulic Torque Wrench to torque, nut size, clearance, and reaction space.
A: Reserve prevents routine operation near maximum tool capacity.
A: Hydraulic Torque Wrench pricing depends on capacity, head type, pump, and accessories.
A: Choose square-drive for versatility and low-profile for restricted access.
A: Check calibration, pressure, hoses, couplings, lubrication, and reaction stability.
