Pneumatic Torque Wrench: A Powerful and Precise Tool for Controlled Bolting

A pneumatic torque wrench is an advanced planetary gear-driven continuous rotation bolting instrument powered by compressed air, designed to deliver repeatable, high-accuracy torque ranging from hundreds to tens of thousands of Newton meters with minimal noise, low operator fatigue, and certified continuous output precision within plus or minus five percent.

Table of Contents

1. Principles and Functionality

2. Key Advantages

3. Industrial Applications

4. Selection Analysis: Pneumatic vs Electric

Principles and Functionality of Pneumatic Torque Wrenches

A pneumatic torque wrench operates through the translation of compressed air potential energy into high-ratio mechanical rotational force via an integrated pneumatic motor coupled directly to a multi-stage epicyclic planetary gearbox, establishing a smooth, vibration-free continuous torque output for high-tonnage industrial bolting joints.

From an engineering perspective, understanding the foundational mechanics of a pneumatic torque wrench begins with distinguishing continuous rotation tools from traditional pneumatic impact wrenches. Standard impact tools rely on internal hammers striking an anvil to generate intermittent, uncontrolled kinetic shocks. In contrast, an industrial pneumatic torque wrench utilizes a precision-engineered pneumatic vane motor that rotates at high speeds under regulated air pressure. This high-speed, low-torque mechanical output feeds directly into a multi-stage planetary gearbox, which reduces rotational speed while exponentially multiplying output torque. The result is a smooth, continuous delivery of torsional energy to the fastener without the violent reaction shocks, acoustic hazards, and uncontrolled torque variance characteristic of impact drivers.

The operational mechanism is intrinsically linked to precise pressure regulation. Because output torque is a direct mathematical function of air pressure supplied to the pneumatic motor, controlled bolting is achieved by adjusting the input air pressure via an external Air Control Unit featuring a filter, regulator, and lubricator system. Accurate torque wrench adjustment is performed by referencing a certified, tool-specific calibration chart that correlates input pressure in bar or PSI to output torque in Newton meters or foot-pounds. When compressed air reaches the pre-calibrated pressure set point, the pneumatic motor reaches dynamic stall equilibrium or triggers an automatic shut-off mechanism, stopping rotation precisely at the target torque value. This predictable mechanical torque wrench purpose guarantees that every bolt within a multi-fastener flange assembly receives identical tensioning force.

In field applications across European process plants, our engineering teams specifically analyze how pneumatic gearbox design affects thermal buildup and structural deflection. A continuous rotation pneumatic torque wrench eliminates friction-induced heat spike issues commonly encountered in hydraulic bolting systems during continuous duty cycles. The constant expansion of compressed air through the tool motor exerts a natural cooling effect on the gear housing, allowing continuous operation in high-throughput assembly lines without thermal degradation of internal lubricants or gear tooth profiles. For heavy-duty industrial operations requiring continuous high performance, engineers frequently deploy modern Pneumatic Torque Wrench configurations that combine multi-stage alloy steel planetary gears with ergonomic reaction arms to neutralize rotational counter-forces safely.

Functionality

Key Advantages of Pneumatic Torque Wrenches in Industrial Operations

Pneumatic torque wrenches deliver unmatched operational advantages in heavy industry by combining absolute ATEX-compliant safety in hazardous explosive environments with continuous high-speed rotation, extreme torque repeatability within plus or minus five percent, and superior ergonomic safety that protects operators from industrial vibration injuries.

In heavy industrial joint assembly, the advantages of a pneumatic torque wrench extend across mechanical efficiency, workplace safety, and financial return on investment. The primary driver for selecting pneumatic technology over alternative power sources lies in its inherent explosion-proof safety profile. Petrochemical refineries, offshore oil platforms, chemical processing plants, and underground coal mines represent environments where combustible gases, volatile hydrocarbon vapors, and airborne dust clouds are constantly present. Electric tools pose intrinsic sparking risks from motor brushes or switch contacts, while hydraulic units carry fluid leak and pressure line risks.

A second decisive advantage is operational speed and productivity. While hydraulic torque wrenches require a reciprocating stroke motion where the socket advances step-by-step, a pneumatic torque wrench provides continuous 360-degree rotation. This continuous drive capability speeds up run-down and tightening cycles by up to ten times compared to hydraulic alternatives, drastically reducing maintenance downtime during major plant turnarounds. Furthermore, because the heavy reaction force is completely absorbed by the structural reaction arm abutting against an adjacent bolt or flange body, zero torque strain is transmitted to the tool operator. This ergonomic design eliminates hand-arm vibration syndrome and muscle fatigue, complying fully with rigorous international workplace health and safety directives.

When consulting with European industrial clients, we often address why specific mechanical configurations are selected for modern industrial fleets. European maintenance engineers prioritize continuous duty cycle endurance, minimal calibration drift, and rapid servicing capability. A well-engineered continuous rotation pneumatic torque wrench fulfills these demands through robust mechanical construction and simplified maintenance requirements. To review comprehensive engineering specifications across various pneumatic models and gear ratios, technicians often consult detailed Pneumatic Torque Wrench documentation to match specific joint torque requirements with optimal tool torque ranges.

Advantages of pneumatic torque wrenches

1. Superior Repeatability and Accuracy: Delivers consistent torque output within plus or minus four to five percent repeatability across thousands of bolting cycles, ensuring equal bolt tensioning across critical pressure-retaining flanges.

2. Intrinsic Safety in Hazardous Zones: Powered exclusively by compressed air with no electrical components, enabling safe continuous operation in explosive atmospheres, refineries, and chemical processing facilities.

3. High-Speed Continuous Rotation: Executes continuous 360-degree fastener run-down and tensioning, accelerating bolting operations up to ten times faster than conventional stroke-action hydraulic wrenches.

4. Ergonomic Protection and Zero Reaction Torque: Structural reaction arms fully anchor rotational counter-forces against adjacent rigid structures, protecting operators from dangerous kickback and long-term vibration exposure.

5. Heavy Duty Cycle Reliability: Pneumatic expansion cooling prevents motor overheating during non-stop production line or refinery turnaround operations, ensuring uninterrupted tool availability.

Industrial Applications and Sector Deployment

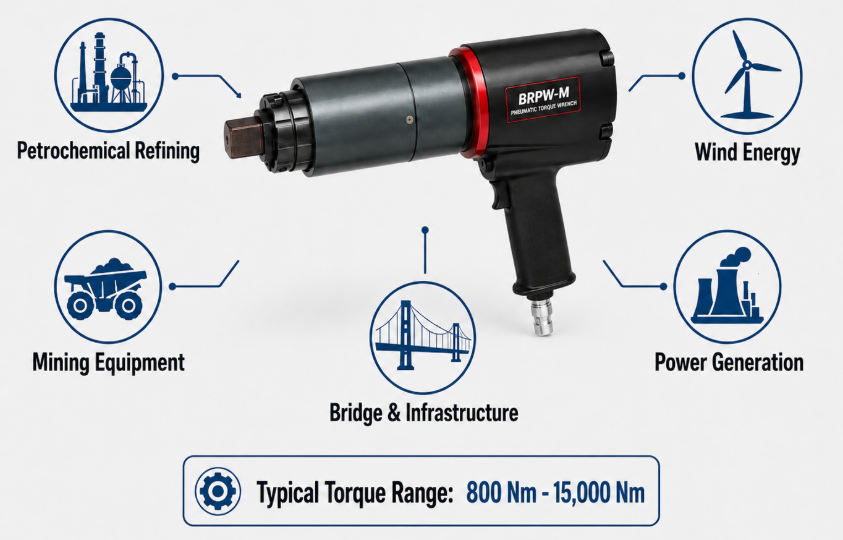

Industrial pneumatic torque wrenches are critical bolting solutions across oil and gas processing, power generation, wind turbine construction, heavy mining infrastructure, steel mill maintenance, and large-scale pipeline installation where high-tonnage fasteners demand verified clamp load accuracy.

The versatility of the pneumatic torque wrench makes it an indispensable instrument across diverse heavy industrial engineering sectors. In oil refineries and offshore petrochemical processing facilities, pressure-retaining pipe flanges, heat exchangers, reactor vessels, and blow-out preventers depend on uniform gasket compression. Inconsistent bolt tension on a hydrocarbon flange can cause catastrophic fugitive emissions, environmental contamination, or fire hazards. The pneumatic torque wrench ensures that every stud bolt is tightened to exact design specifications following ASME PCC-1 guidelines for bolted flange joint assembly, creating a hermetic seal that withstands extreme internal fluid pressures and thermal cycling.

In the renewable energy sector, particularly wind turbine erection and maintenance, bolting applications present unique engineering challenges. Wind turbine tower segment flanges, slewing bearings, hub attachments, and blade root fasteners require high torque values often exceeding several thousand Newton meters, executed at significant heights under tight time constraints. Field technicians rely on pneumatic bolting systems for fast run-down speeds during tower stacking. Similarly, in heavy mining equipment maintenance—such as track pad replacement on hydraulic excavators, crusher liner installation, and haul truck wheel nut torquing—pneumatic bolting tools deliver the immense force required to break loose corrosion-seized fasteners and torque new bolts accurately in extreme dust and mud conditions.

When analyzing equipment selection with global project directors, we frequently evaluate how plant infrastructure impacts tool deployment. While pneumatic systems are ideal for plants equipped with centralized compressed air rings, remote field crews without heavy diesel compressors often require self-contained electric alternatives. For field operations where compressed air supplies are unavailable or logistically impractical, engineers specify advanced corded or battery systems such as the BRAC-S Series Electric Torque Wrench With Power Adapter, which provides precise digital torque control directly from standard electrical power or portable generators.

Applications

1. Petrochemical and Refining Flanges: Bolting critical pipe joints, pressure vessel covers, and heat exchanger end-plates to strict ASME flange seating specifications.

2. Wind Turbine Tower & Rotor Assembly: Tensioning foundation anchor bolts, tower section connect flanges, main bearing mounts, and blade root bolts during installation and scheduled service.

3. Heavy Mining and Earthmoving Machinery: Servicing excavator track shoes, ball mill liners, haul truck wheel studs, and crusher structural frames under harsh dirt and moisture conditions.

4. Thermal, Hydro, and Nuclear Power Plants: Securing steam turbine casings, high-pressure steam lines, boiler feed pumps, and penstock flange couplings during major overhaul turnarounds.

5. Infrastructure and Bridge Construction: Torquing structural steel beam connections, high-strength friction-grip (HSFG) bolts, and heavy crane runway anchor plates.

Selection Analysis: Pneumatic vs. Electric Torque Wrenches

Selecting between a pneumatic torque wrench and an electric torque wrench depends on operational air utility availability, hazardous area classification, required portability, duty cycle intensity, and digital data logging needs for quality assurance compliance.

When establishing tool fleet standardizations for major industrial engineering clients, a rigorous comparative evaluation between pneumatic drive systems and electric drive systems is essential. Both tool types utilize similar planetary reduction gearboxes to multiply torque, but their underlying power sources and motor control characteristics create distinct operational capabilities. The pneumatic torque wrench excels in continuous, heavy-duty industrial environments where compressed air infrastructure is readily available, such as manufacturing plants, refineries, and shipyard dry docks. Pneumatic tools feature an exceptionally high power-to-weight ratio, enabling compact tool dimensions that fit into restricted mechanical envelopes. Furthermore, because pneumatic motors contain no electronic circuits, they are immune to electromagnetic interference, electrical surges, and moisture ingress.

On the other hand, electric torque wrenches—utilizing brushless DC motors and digital microcontrollers—offer superior precision, user programmability, and data connectivity. Electric tools allow operators to set target torque directly via digital displays without requiring external calibration charts or pressure regulators. Modern electric units also support multi-stage bolting algorithms, angle-of-turn tightening strategies, and real-time wireless torque data logging for automated quality control recordkeeping. However, in continuous non-stop bolting cycles under maximum load, electric motors generate internal heat that may trigger thermal protection cut-offs, whereas pneumatic motors continue to run cool indefinitely due to internal air expansion.

In our technical consultations with European plant managers, clients frequently ask why specific motor configurations are preferred in automotive and heavy equipment assembly. European manufacturing facilities prioritize process traceability, low energy consumption, and precise audit trails, making smart electric wrenches highly attractive for factory assembly floors. Conversely, heavy maintenance turnarounds in offshore and petrochemical sectors remain heavily dominated by pneumatic tools due to ATEX explosion safety standards and rugged mechanical durability. Understanding this operational duality allows engineers to deploy the exact bolting technology required for each operational scenario.

When to Choose Pneumatic vs. Electric Torque Wrenches

1. Choose Pneumatic when operating in explosive ATEX environments where electrical sparks or electronic components present safety hazards.

2. Choose Pneumatic for continuous, 24/7 non-stop turnaround bolting where tool thermal buildup must be completely eliminated.

3. Choose Electric when working on remote sites without stationary air compressors or heavy portable diesel air generators.

4. Choose Electric when joint quality specifications require digital torque display, angle-of-turn strategy, and automated bolt tightening data logging.

5. Choose Pneumatic for harsh, high-moisture, outdoor marine environments where exposed electrical connectors could corrode or short-circuit.

Maintenance Guidelines and Operational Reliability: To maintain calibrated accuracy within plus or minus four percent and ensure long-term mechanical reliability of a pneumatic torque wrench, engineering teams must enforce a strict preventive maintenance protocol. First, always operate the tool with an inline Air Control Unit (Filter-Regulator-Lubricator) positioned within five meters of the tool to remove moisture, prevent corrosion in the pneumatic motor, and feed clean, ISO VG 32 pneumatic tool oil at a rate of 2 to 3 drops per minute. Second, regularly inspect the reaction arm for micro-fractures, burrs, or deformation, as damaged reaction arms alter the lever arm distance and introduce measurement error during high-torque loading. Third, verify annual recalibration according to ISO 6789 standards on a certified torque transducer test bench. Proper torque wrench adjustment and pressure calibration prevent mechanical drift, ensuring the tool continues to fulfill its critical torque wrench purpose in maintaining structural bolt integrity across demanding industrial environments.

Comprehensive Technical Conclusion and Industry Outlook

In summary, the pneumatic torque wrench remains one of the most reliable, powerful, and precise instruments available to modern industrial engineers for controlled bolting. By combining continuous smooth rotation, exceptional power-to-weight performance, intrinsic ATEX explosion safety, and precise torque repeatability, pneumatic torque wrenches address the most demanding joint integrity challenges in heavy manufacturing, petrochemical refining, power generation, and infrastructure construction. Selecting the optimal bolting tool requires a balanced evaluation of site utilities, environment safety classifications, continuous duty demands, and quality verification requirements. When integrated with proper air filtration, regular calibration, and trained operating procedures, pneumatic torque wrenches deliver flawless joint integrity, zero unexpected flange failures, and maximum long-term operational productivity.
