TD Series
Baier
8467890000
Product Description

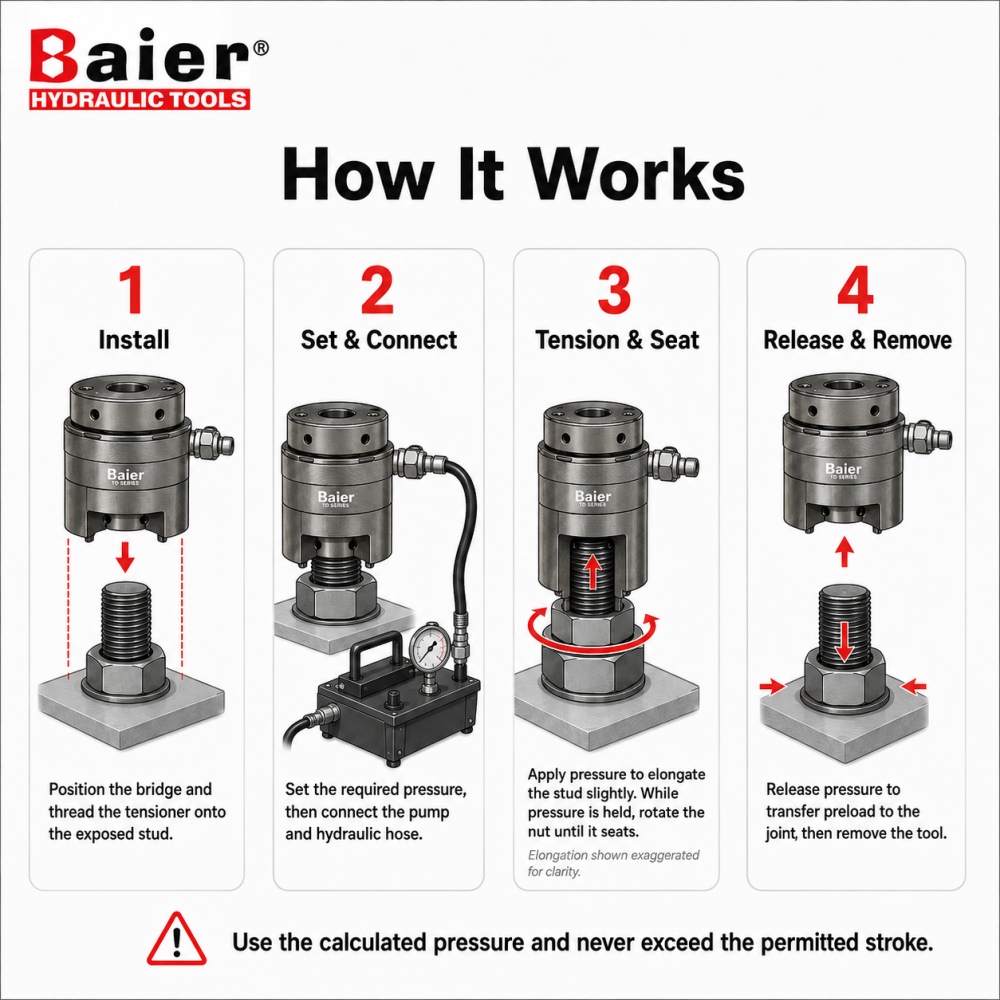

The Baier TD Series applies controlled axial force directly to the stud. Hydraulic pressure elongates the bolt slightly, allowing the nut to be seated before pressure is released and the preload is transferred to the joint.

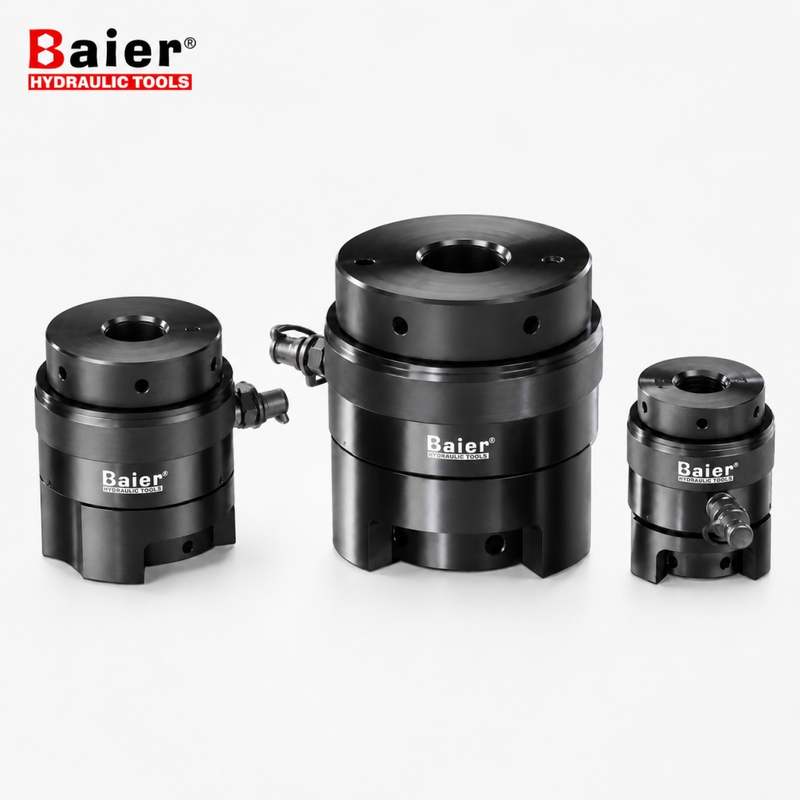

The series includes 33 model configurations covering M20–M115 bolts for wind power, power generation, petrochemical and heavy industrial applications.
33 model configurations cover metric bolt sizes from M20 to M115.
Maximum tensile force ranges from 155 to 3793 kN, depending on the selected model.
Compatible with suitable manual or electric high-pressure hydraulic pumps.
Multiple tensioners can be connected to one pump for simultaneous operation.

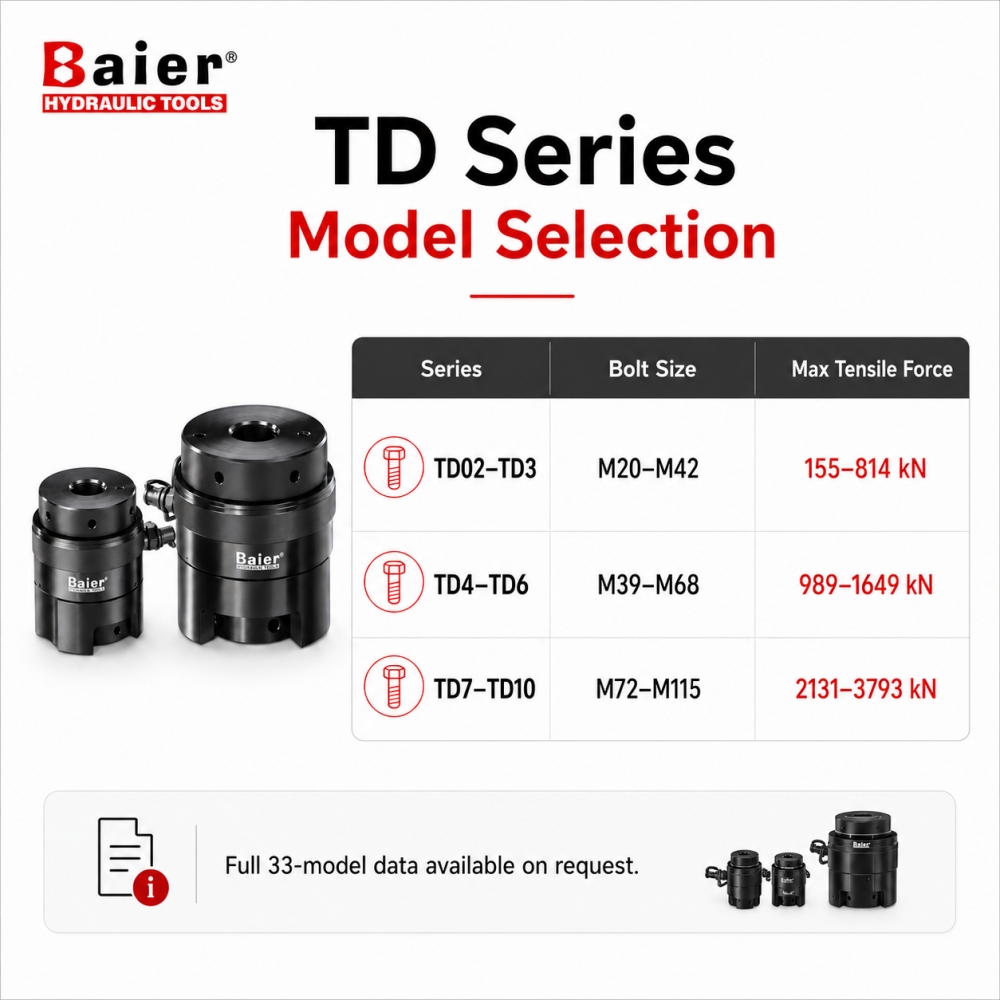

Select the model according to bolt size, required tensile force and available installation space
Item | Specification |
|---|---|
Bolt Size Range | M20–M115 |
Maximum Tensile Force | 155–3793 kN |
Maximum Allowable Pressure | 1500 bar |
Model Configurations | 33 |
Pump Options | Manual or Electric |
Operation | Single or Multiple Tensioners |
Weight Range | 1.3–49 kg |
Series | Model | Order Number | Bolt Size (mm) | Maximum Tensile Force (kN) | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|
TD02 | TD020 | C03-010400026 | M20 | 155 | 71 | 50 | 25 | 25 | 80 | 100 | 1.3 |
TD022 | C03-010400027 | M22 | 155 | 71 | 50 | 27 | 27 | 80 | 100 | 1.3 | |
TD1 | TD124 | C03-010400028 | M24 | 282 | 85 | 66 | 30 | 30 | 80 | 100 | 3.5 |
TD2 | TD224 | C03-010400001 | M24 | 486 | 109 | 70 | 30 | 30 | 80 | 100 | 5.5 |
TD227 | C03-010400029 | M27 | 486 | 109 | 70 | 35 | 35 | 90 | 115 | 5.5 | |
TD230 | C03-010400030 | M30 | 486 | 109 | 75 | 35 | 35 | 90 | 115 | 5.5 | |
TD233 | C03-010400031 | M33 | 486 | 109 | 82 | 38 | 38 | 95 | 120 | 5.5 | |
TD236 | C03-010400032 | M36 | 486 | 109 | 85 | 42 | 42 | 100 | 125 | 5.5 | |
TD3 | TD333 | C03-010400033 | M33 | 814 | 132 | 85 | 38 | 38 | 100 | 120 | 7 |
TD336 | C03-010400010 | M36 | 814 | 132 | 85 | 42 | 42 | 100 | 125 | 7 | |
TD339 | C03-010400020 | M39 | 814 | 132 | 98 | 45 | 45 | 110 | 130 | 7 | |
TD342 | C03-010400005 | M42 | 814 | 132 | 105 | 48 | 48 | 115 | 138 | 7 | |
TD4 | TD439 | C03-010400035 | M39 | 989 | 150 | 98 | 48 | 48 | 115 | 130 | 10 |
TD442 | C03-010400007 | M42 | 989 | 150 | 105 | 48 | 48 | 115 | 138 | 10 | |
TD445 | C03-010400036 | M45 | 989 | 150 | 112 | 50 | 50 | 120 | 145 | 10 | |
TD448 | C03-010400037 | M48 | 989 | 150 | 125 | 55 | 55 | 120 | 145 | 10 | |
TD5 | TD552 | C03-010400038 | M52 | 1413 | 174 | 130 | 55 | 55 | 125 | 150 | 15 |
TD556 | C03-010400039 | M56 | 1413 | 174 | 135 | 60 | 60 | 125 | 150 | 15 | |
TD6 | TD656 | C03-010400040 | M56 | 1649 | 198 | 135 | 60 | 60 | 125 | 150 | 17 |
TD6 | TD660 | C03-010400018 | M60 | 1649 | 198 | 145 | 65 | 65 | 135 | 175 | 17 |
TD664 | C03-010400006 | M64 | 1649 | 198 | 155 | 70 | 70 | 135 | 180 | 17 | |
TD668 | C03-010400041 | M68 | 1649 | 198 | 170 | 72 | 72 | 140 | 185 | 17 | |
TD7 | TD772 | C03-010400002 | M72 | 2131 | 222 | 180 | 75 | 75 | 145 | 195 | 26 |
TD776 | C03-010400003 | M76 | 2131 | 222 | 180 | 80 | 80 | 145 | 195 | 26 | |
TD8 | TD876 | C03-010400042 | M76 | 2544 | 252 | 180 | 80 | 80 | 190 | 215 | 29.5 |
TD880 | C03-010400008 | M80 | 2544 | 252 | 190 | 85 | 85 | 190 | 220 | 29.5 | |
TD885 | C03-010400043 | M85 | 2544 | 252 | 193 | 90 | 90 | 190 | 220 | 29.5 | |
TD890 | C03-010400044 | M90 | 2544 | 252 | 210 | 95 | 95 | 200 | 230 | 29.5 | |
TD9 | TD995 | C03-010400045 | M95 | 3101 | 282 | 220 | 100 | 100 | 200 | 235 | 38 |
TD9100 | C03-010400046 | M100 | 3101 | 285 | 235 | 105 | 105 | 205 | 245 | 38 | |
TD10 | TD10105 | C03-010400047 | M105 | 3793 | 318 | 240 | 110 | 110 | 220 | 260 | 49 |
TD10110 | C03-010400048 | M110 | 3793 | 318 | 250 | 115 | 115 | 235 | 275 | 49 | |
TD10115 | C03-010400049 | M115 | 3793 | 318 | 260 | 120 | 120 | 240 | 280 | 49 |

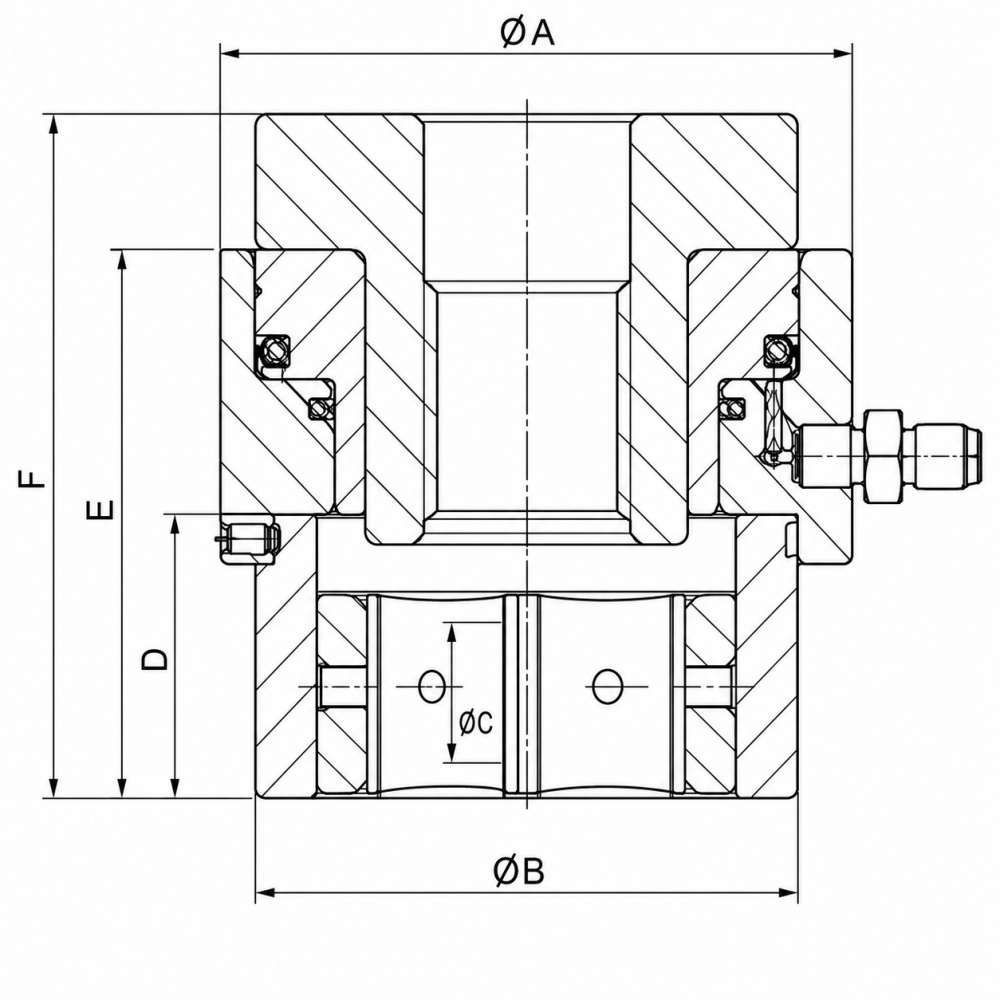

Dimensions A–F correspond to the dimensional drawing. The actual operating pressure must be calculated according to the required preload and the selected tensioner. Do not exceed the maximum allowable pressure.

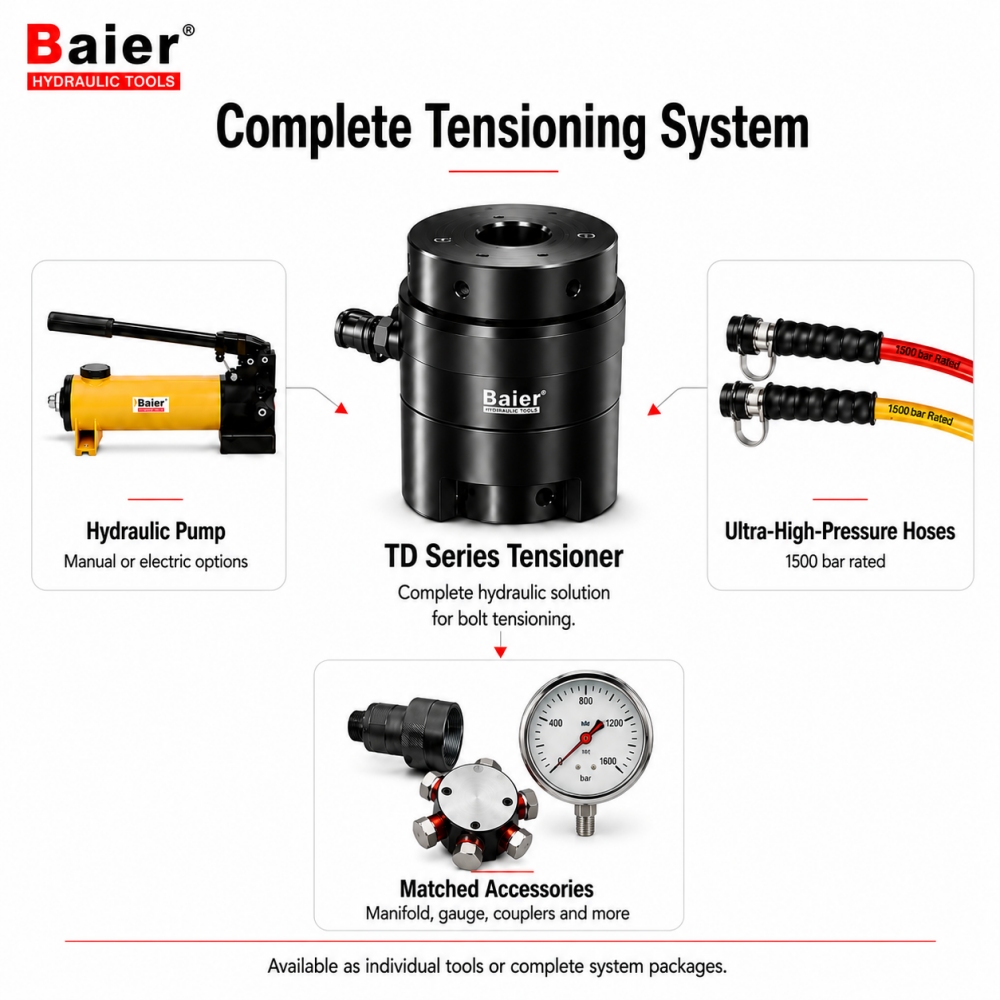

Baier can supply individual TD Series tensioners or a complete system matched to the required number of tools and operating method.
TD Series Tensioner
Manual or Electric Hydraulic Pump
High-Pressure Hoses
Multi-Port Manifold
Couplers and Matched Accessories
Multiple tensioners can be connected through high-pressure hoses and a distribution manifold for simultaneous operation.

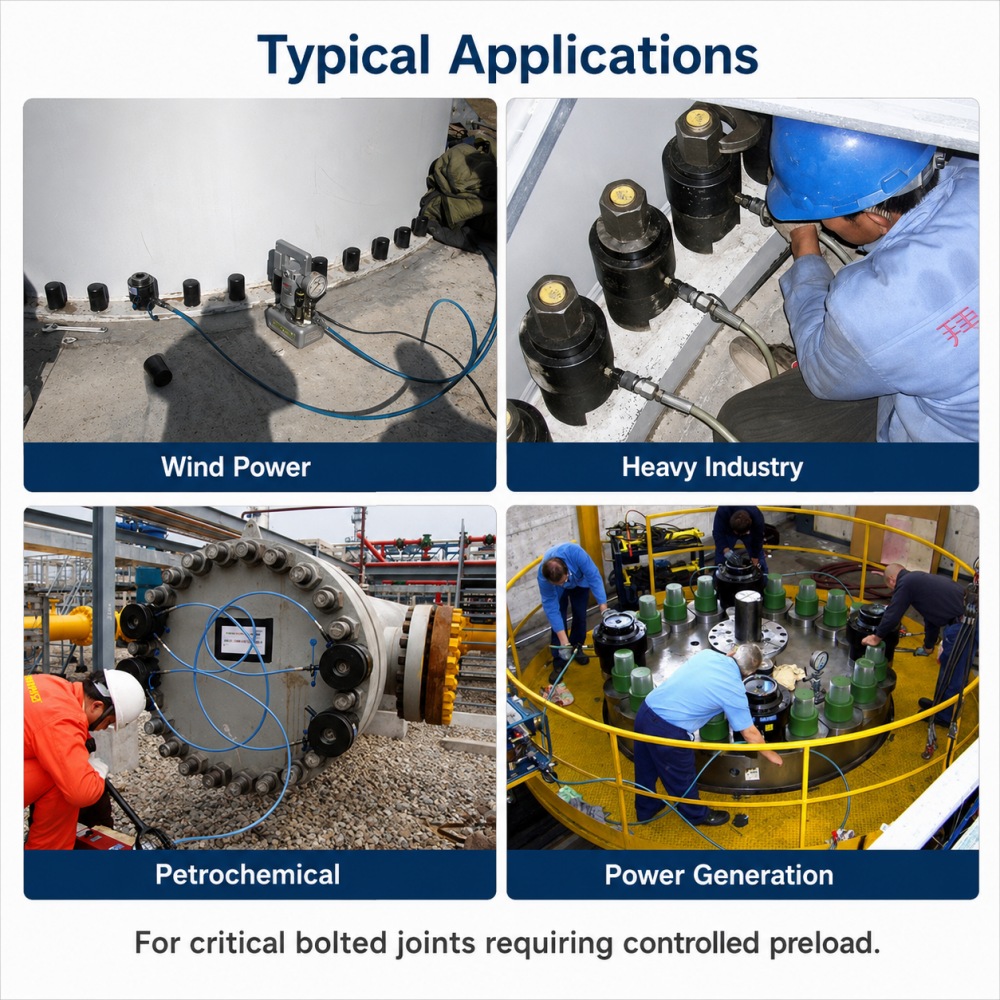

Designed for critical bolted joints requiring controlled preload in wind power, power generation, petrochemical equipment and heavy industry.
The TD Series covers metric bolt sizes from M20 to M115 across 33 model configurations.
Yes. Multiple tensioners can be connected to one compatible pump through high-pressure hoses and a manifold.
No. The actual operating pressure must be calculated according to the required preload and the selected tensioner. 1500 bar is the maximum allowable pressure limit.
Send us your bolt drawing, required preload and application details. Our team will recommend the suitable TD Series model and hydraulic system.
