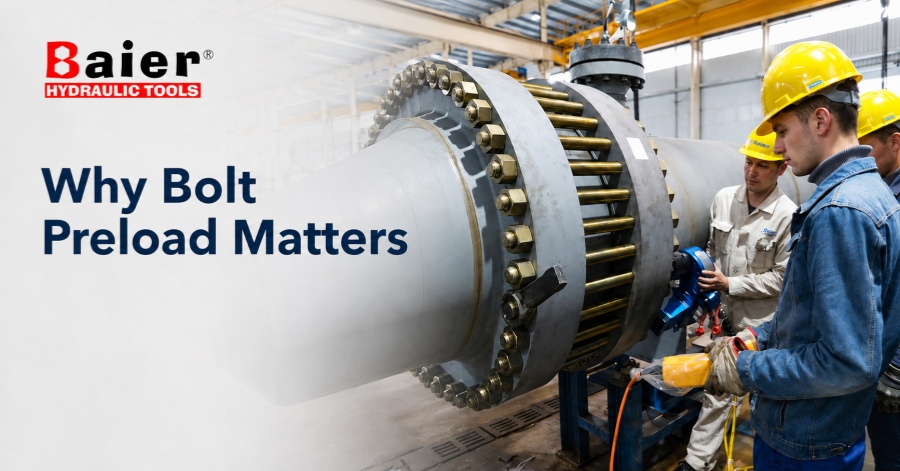

Why Bolt Preload Matters for Industrial Safety

From One Bolt to Industrial Safety: Why Precision Bolting Matters

In wind turbines, pressure piping, mining equipment and heavy machinery, a bolt may look insignificant beside the equipment it holds together. However, the integrity of the entire connection depends heavily on the clamp force created during assembly.

Too little preload can allow joint separation, movement, loosening or leakage. Too much preload can overload the fastener, damage the threads or apply excessive compression to the joint.

The objective is therefore not to tighten a bolt as much as possible. It is to achieve the correct and consistent preload for the specific connection.

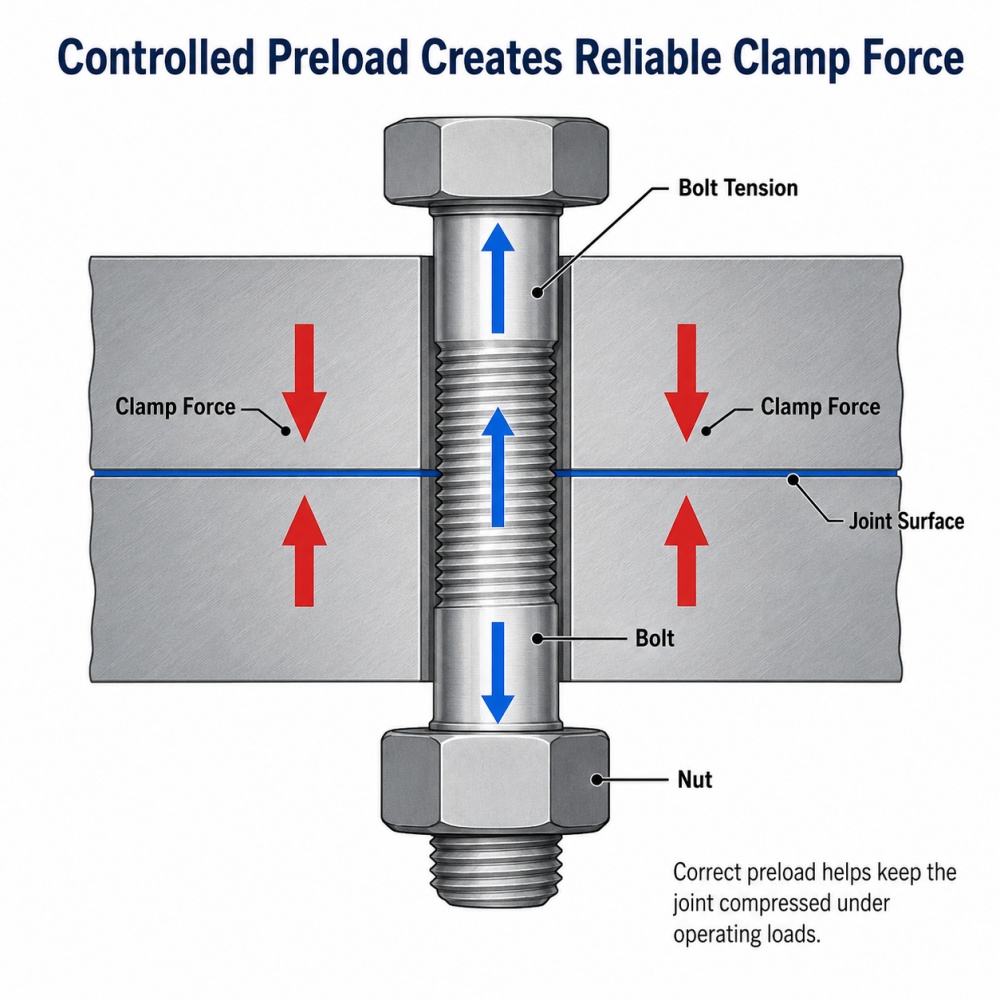

Bolt Preload: The Force Behind a Reliable Joint

When a bolt is tightened, it stretches slightly and creates a clamping force between the connected parts. This preload helps the joint resist operating loads while keeping the mating surfaces compressed.

If preload varies significantly from one bolt to another, the load may not be distributed evenly. Some fasteners may carry more operating load, increasing the risk of movement, fatigue, leakage or premature joint failure.

For critical structural and flanged joints, the bolting plan should define:

·         Target torque or preload

·         Tightening method and sequence

·         Lubrication and thread condition

·         Required tools and accessories

·         Verification and documentation requirements

Torque Is a Method, Not a Direct Measurement of Clamp Load

Applied torque is converted into bolt preload through the threads and bearing surfaces. Friction has a major influence on this relationship.

Changes in lubrication, coating, thread condition, washer surface, alignment or joint geometry can cause the same torque value to produce a different clamp load.

Reliable tightening therefore depends on more than the tool’s accuracy rating. Correct sockets, stable reaction points, tightening sequences, incremental passes, calibrated equipment, qualified operators and an approved procedure all contribute to a repeatable result.

Tool accuracy supports process control, but it does not replace the project’s engineering specification or approved bolting procedure.

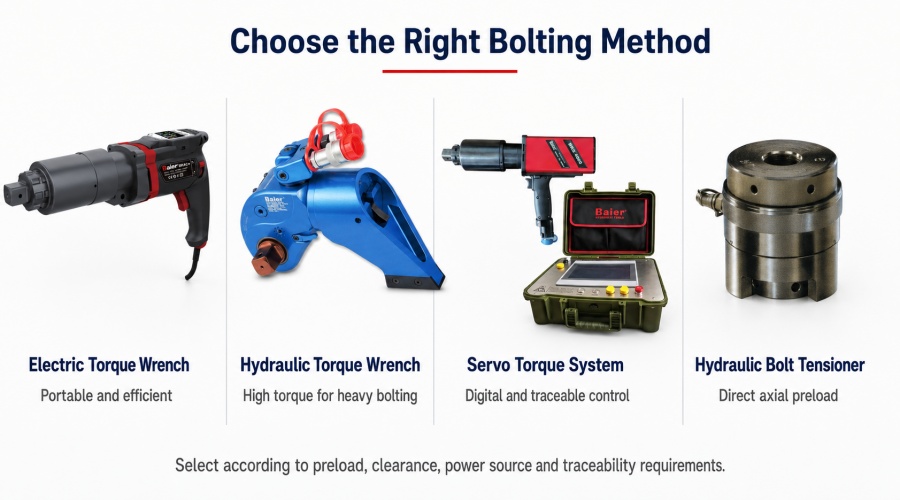

Different Joints Require Different Bolting Methods

There is no single bolting tool suitable for every industrial application. Selection should consider the required torque or preload, working clearance, power source, operating environment, data requirements and whether several fasteners must be operated simultaneously.

 Industrial Bolting Method Comparison

The correct method should be selected according to the joint design and approved assembly procedure, rather than by comparing maximum torque or accuracy figures alone.

Accuracy Should Match the Application

Baier product accuracy is specified by product series rather than through one universal claim.

For example:

·         BRAC-S plug-in electric torque wrenches: ±5%

·         BRDC cordless torque wrenches: ±5%

·         RTA hydraulic torque wrenches: ±3%

·         BRSH servo electric torque systems: ±3%

Accuracy is only one part of tool selection. Torque range, operating space, reaction support, working speed, power availability, traceability requirements and the complete bolting procedure must also be considered.

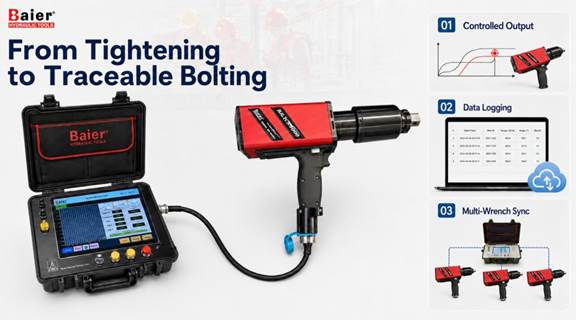

From Tightening to Traceable Bolting

For applications requiring documented assembly results, digital control and data recording can turn tightening from an isolated action into a reviewable process.

The Baier BRSH Servo Electric Torque Wrench combines a Panasonic servo motor, Siemens PLC control and a 10-inch touch-screen control box. The system supports data logging, USB export and multi-wrench synchronization.

These functions are suitable for industrial projects where controlled tightening, process records and quality review are important.

Recorded data should always be used together with approved work instructions, calibrated equipment and qualified operators.

Integrated Bolting Support for Industrial Projects

Industrial projects often involve different bolt sizes, joint structures and operating conditions.

Baier provides plug-in electric, cordless, servo electric and hydraulic torque tools, together with hydraulic bolt tensioners, hydraulic pumps, flange tools and related accessories.

For distributors, EPC contractors and industrial maintenance teams, coordinated product selection can:

·         Simplify equipment procurement

·         Improve system compatibility

·         Reduce communication between multiple suppliers

·         Support operator training and equipment maintenance

·         Make after-sales service more efficient

Bolting-System Selection Checklist

Before selecting a torque wrench or bolt tensioning system, confirm the following information:

·         Application and joint type

·         Bolt or stud size, grade and condition

·         Specified target torque or preload

·         Available working clearance

·         Suitable reaction point

·         Preferred power source

·         Site operating conditions

·         Required accuracy and traceability

·         Single-tool or synchronized multi-tool operation

·         Required sockets, reaction arms, pumps, hoses and accessories

·         Calibration, maintenance and training requirements

Precision Bolting Starts with the Right Process

Industrial safety is built through many controlled details. A bolt may be one of the smallest components in a machine or structure, but its preload contributes to the integrity of the entire joint.

Precision bolting means selecting the right tool, following the correct procedure, verifying the result and repeating the process consistently.

That is how one bolt becomes part of a safer and more reliable industrial system.
