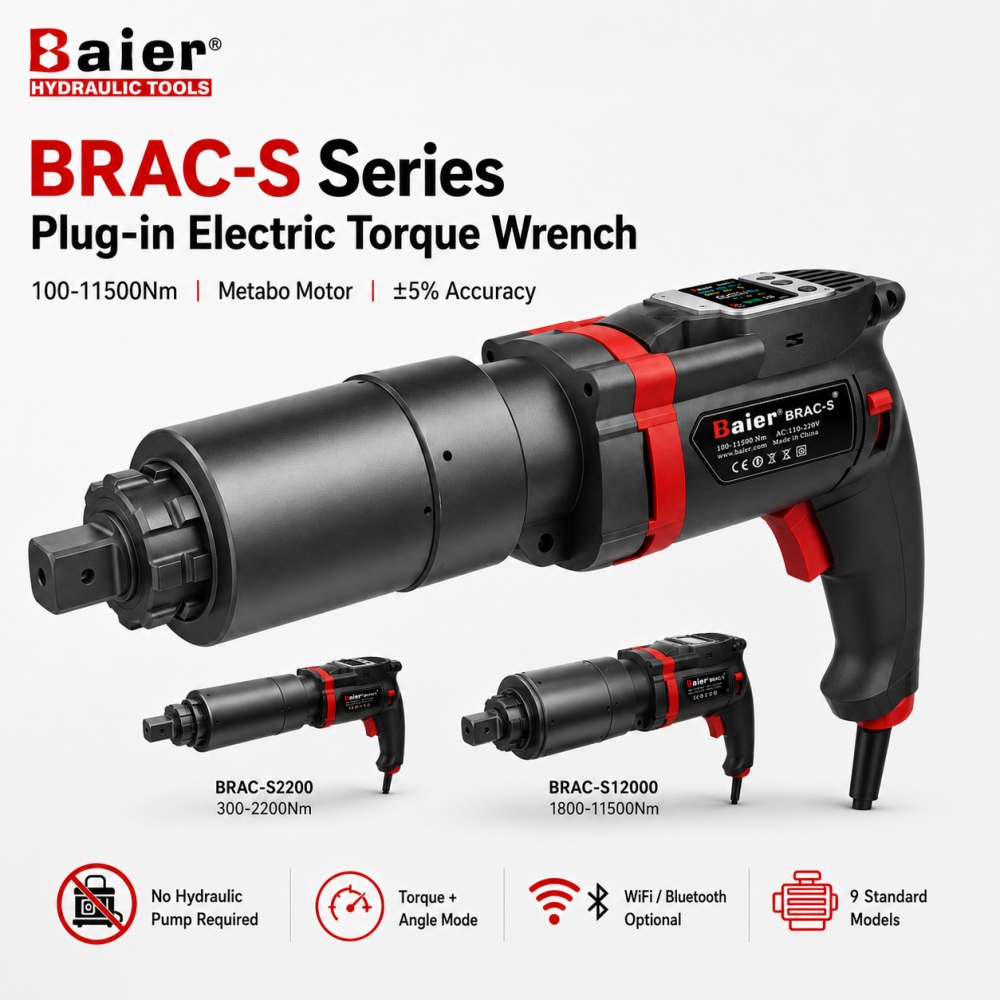

BRAC-S Series Plug-in Electric Torque Wrench 100-11500Nm

BRAC-S Series Plug-in Electric Torque Wrench

Metabo Motor | 100-11500Nm | ±5% Accuracy | No Hydraulic Pump Required

     BRAC-S Series is designed for industrial bolting applications that require stable torque output, reliable continuous operation and easy setup without hydraulic pumps. With nine standard models covering 100-11500Nm, it supports wind power, petrochemical maintenance, bridge construction, heavy equipment assembly and large flange bolting.

Product Highlights

1. Metabo Motor Platform

   Supports stable power output and reliable operation for industrial bolting applications.




2. 100-11500Nm Torque Range

   Nine standard models cover different working requirements from light flange bolting to large industrial assembly.




3. No Hydraulic Pump Required

   Powered by 110-220V AC, the wrench works without hydraulic pumps, oil hoses or additional hydraulic setup.




4. Torque + Angle Control

   Supports torque mode and torque + rotating angle mode for controlled tightening.




5. Stable Continuous Rotation

   Continuous non-impact rotation improves working efficiency and automatically stops when the preset torque is reached.




6. Optional WiFi & Bluetooth

   Available for tightening data tracking, quality control and project traceability.




7. Custom Reaction Arms

   Standard reaction arms are available, and custom reaction arms can be provided for special working conditions.

Metabo Motor & Authorized Supply Support

The BRAC-S Series uses a Metabo motor platform to support stable torque output and reliable operation in industrial bolting applications. For overseas buyers and distributors, a recognized motor platform helps improve confidence in product performance, spare parts support and long-term cooperation.

Baier also holds Metabo distributor authorization, supporting stable supply and cooperation for global industrial customers.

                                                     Powered by Metabo Motor, Backed by Authorized Supply Support

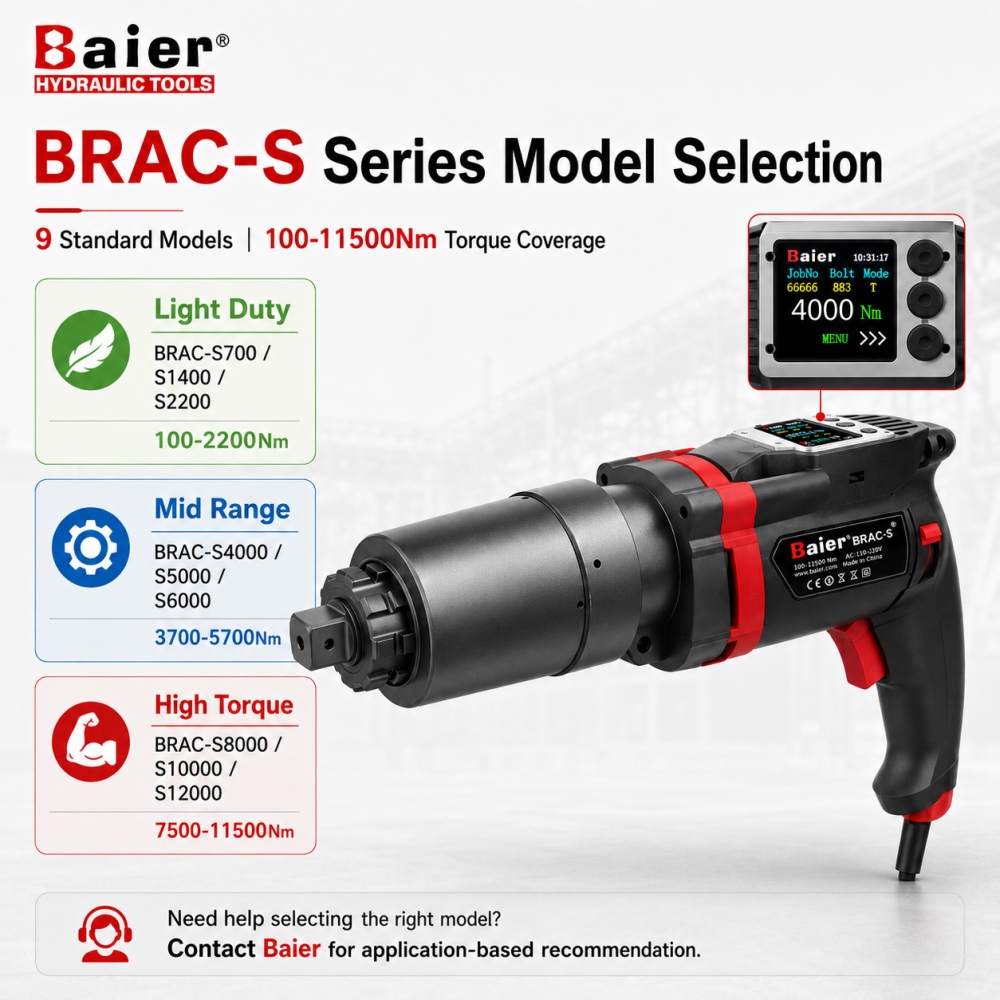

BRAC-S Series Model Selection

BRAC-S Series provides multiple torque ranges for different industrial bolting conditions. Users can select the suitable model based on bolt size, target torque, square drive size, working space and whether the tool is used for tightening or loosening.

Technical Specifications

Need a dedicated wind turbine bolting model?

View BRAC-S5000 Plug-in Electric Torque Wrench for Wind Turbine Assembly.

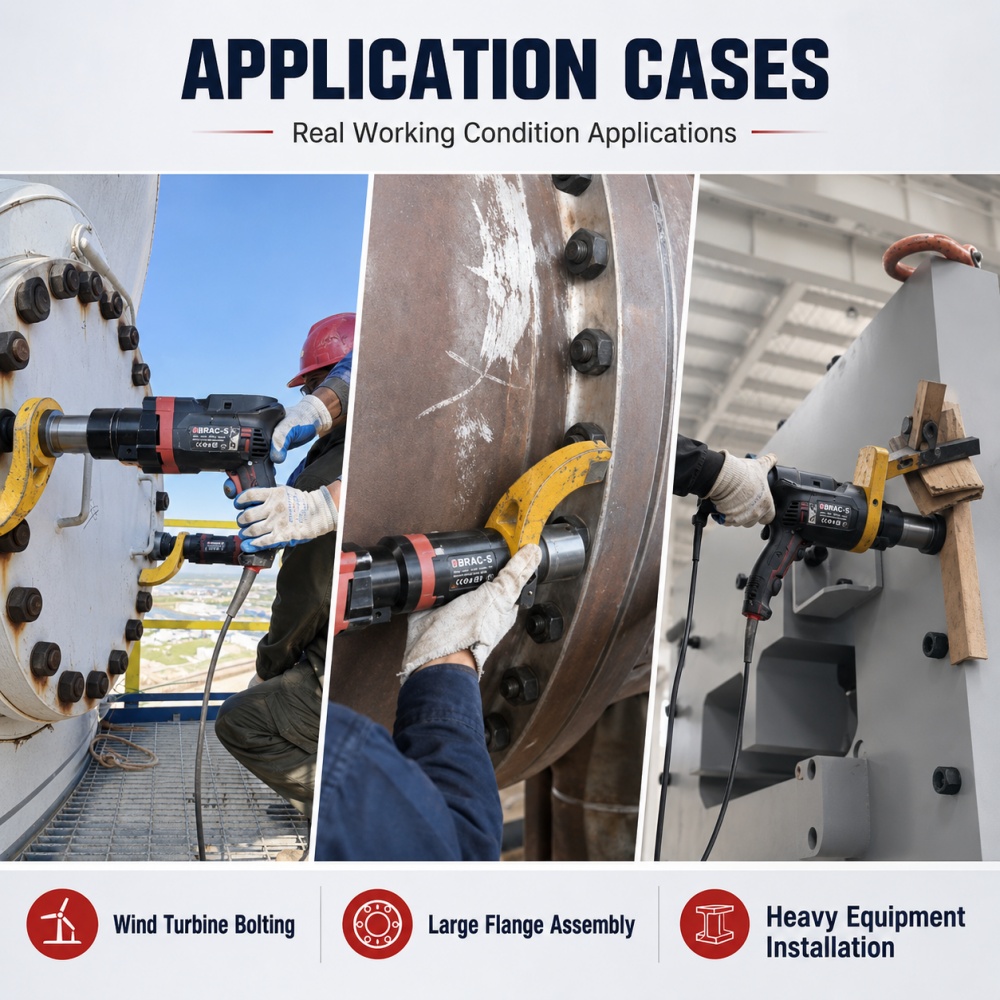

Application Cases for Industrial Bolting

BRAC-S Series is suitable for multiple industrial bolting applications, including wind power, large flange assembly, pressure vessel maintenance, steel structure installation and heavy equipment assembly. The plug-in electric design helps reduce hydraulic setup work and supports efficient on-site tightening.

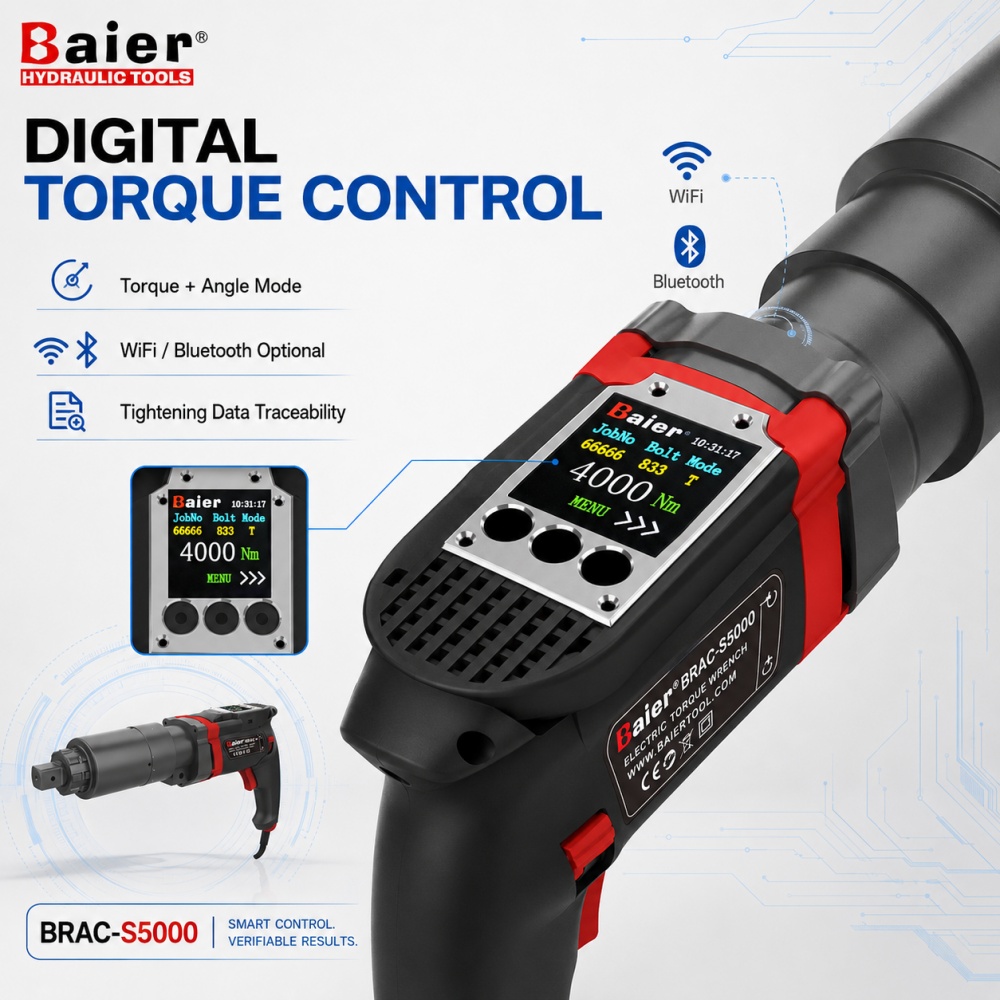

Digital Torque Control and Optional Data Tracking

The BRAC-S Series supports torque mode and torque + angle mode. Operators can set torque values and monitor working status through the digital control interface. WiFi and Bluetooth versions are available for projects that require tightening records, data traceability and quality control documentation.

1. Torque mode

2. Torque + angle mode

3. Digital torque setting

4. Working status display

5. WiFi / Bluetooth optional

6. Tightening data traceability


Reaction Arms & Accessories

Reaction Arms for Different Bolting Conditions

BRAC-S Series can be used with different reaction arms according to the bolt position, reaction point and working space. Standard reaction arms are available, and customized reaction arms can be provided for special industrial fixtures, restricted spaces and non-standard bolting conditions.

Common reaction arm options include trunk type, Z type, double force arm type, four point type and sliding reaction arm type.

Parts Included:

Torque Gun

Power Adapter

Reaction Arm

USB Cable

Tool Case

How to choose and maintain an electric torque wrench?

Choosing the right electric torque wrench depends on bolt size, strength grade, target torque and working conditions. For stable operation, the regular working torque should generally be within 80% of the wrench’s maximum torque capacity.

For bolt loosening applications, the required torque can be 1.5 to 2.5 times higher than the tightening torque, especially when bolts are rusted, overloaded or used in harsh outdoor environments. Please confirm the bolt specification and working condition before model selection.

1.  Confirm the bolt size, strength grade and required tightening torque before selecting a model.

2.  Keep the regular working torque within 80% of the wrench’s maximum torque capacity.

3. For bolt loosening, consider that dismantling torque may be 1.5–2.5 times higher than tightening torque.

4.  Choose the correct impact socket according to bolt and nut size.

5.  Select or customize a suitable reaction arm based on the working space and reaction point.

6. This product is not waterproof. Do not use it in rain, underwater or in wet environments.

7.  Store the wrench properly after use and recalibrate it after maintenance or long-term operation.

After-Sales Service & Distributor Support

Baier provides long-term technical and service support for overseas industrial customers and distributors. We support product operation guidance, spare parts supply, maintenance assistance and dealer cooperation for industrial bolting applications.

1. 12-month warranty

2. Online technical guidance

3. Spare parts support

4. Factory repair service

5. Product replacement when required

6. Long-term distributor cooperation

FAQ

Q1: What is the torque range of the BRAC-S Series?

BRAC-S Series covers 100-11500Nm with nine standard models for different industrial bolting applications.

Q2: What motor does the BRAC-S Series use?

BRAC-S Series uses a Metabo motor platform to support stable torque output and reliable industrial operation.

Q3: Does BRAC-S Series need a hydraulic pump?

No. BRAC-S Series works with 110-220V AC power and does not require an external hydraulic pump or oil hoses.

Q4: What is the accuracy of BRAC-S Series?

The standard torque accuracy is ±5%, with repeatability of ±2%.

Q5: Can BRAC-S Series support torque + angle tightening?

Yes. The wrench supports torque mode and torque + rotating angle mode.

Q6: Is WiFi or Bluetooth available?

Yes. WiFi and Bluetooth versions are available for tightening data tracking and project traceability.

Q7: Which industries can use BRAC-S Series?

BRAC-S Series is suitable for wind power, petrochemical maintenance, bridge construction, heavy equipment assembly, steel structure installation and large flange bolting.

Q8: Can Baier provide custom reaction arms?

Yes. Baier can provide standard and customized reaction arms according to bolt position, working space and reaction point.

Q9: How do I choose the right BRAC-S model?

Model selection depends on bolt size, strength grade, required torque, square drive size, working space and whether the tool is used for tightening or loosening.

Q10: What after-sales support does Baier provide?

Baier provides warranty support, online technical guidance, spare parts supply, repair service and long-term distributor cooperation.

Need Help Choosing the Right Electric Torque Wrench?

Send us your bolt size, target torque, working space and application industry. Baier will help recommend a suitable BRAC-S model and reaction arm solution for your project.
