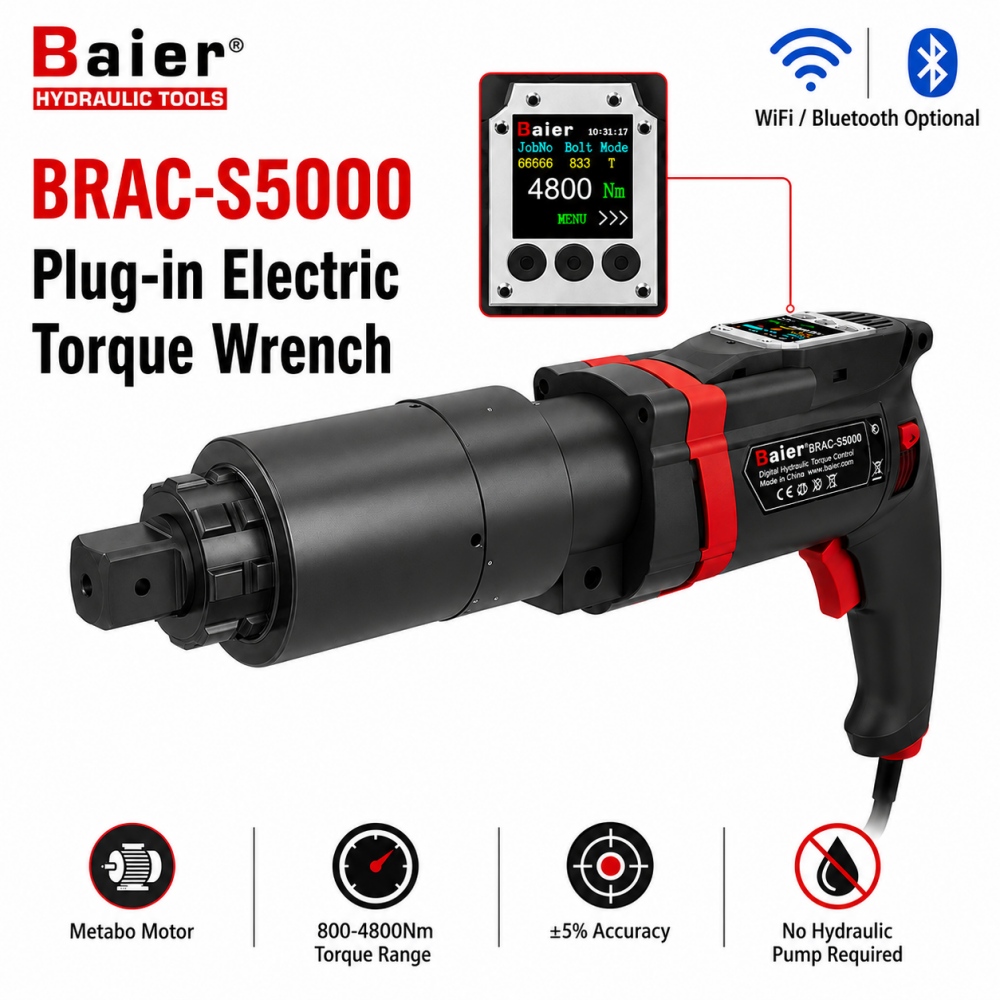

BRAC-S5000 Plug-in Electric Torque Wrench with Metabo Motor for Wind Turbine Assembly

BRAC-S5000 Plug-in Electric Torque Wrench with Metabo Motor

The BRAC-S5000 is designed for wind turbine assembly, large flange bolting and heavy industrial construction. Equipped with a Metabo motor, it provides stable torque output from 800-4800Nm with torque + angle control mode. Powered by 110-220V AC, the tool works without an external hydraulic pump, helping users improve on-site bolting efficiency.

Product Highlights

1. Metabo Motor Platform

   Equipped with a Metabo motor to support stable operation and reliable industrial performance.




2. 800-4800Nm Torque Range

   Suitable for wind turbine assembly, large flange bolting and heavy industrial construction.




3. Plug-in AC Powered Operation

   Powered by 110-220V AC, 50-60Hz, without the need for an external hydraulic pump or hoses.




4. ±5% Torque Accuracy

   Provides controlled tightening performance with ±5% accuracy and ±2% repeatability.




5. Torque + Angle Control Mode

   Supports torque mode and torque + rotating angle mode for critical bolting applications.




6. Stable Continuous Rotation

   Continuous non-impact rotation improves tightening efficiency and automatically stops when the preset torque is reached.




7. Optional WiFi & Bluetooth

   Wireless data tracking options are available for tightening records and project traceability.




8. Custom Reaction Arms Available

   Standard reaction arm included, with custom reaction arms available for different working conditions.

Metabo Motor & Authorized Supply Support

The motor is one of the key components that determines the working stability and service reliability of an electric torque wrench. The BRAC-S5000 uses a Metabo motor platform to support continuous industrial operation, stable torque output and reliable on-site performance.

Baier also holds Metabo distributor authorization, providing stronger confidence for overseas customers who care about component reliability, spare parts support and long-term cooperation.

                                                     Powered by Metabo Motor, Backed by Authorized Supply Support

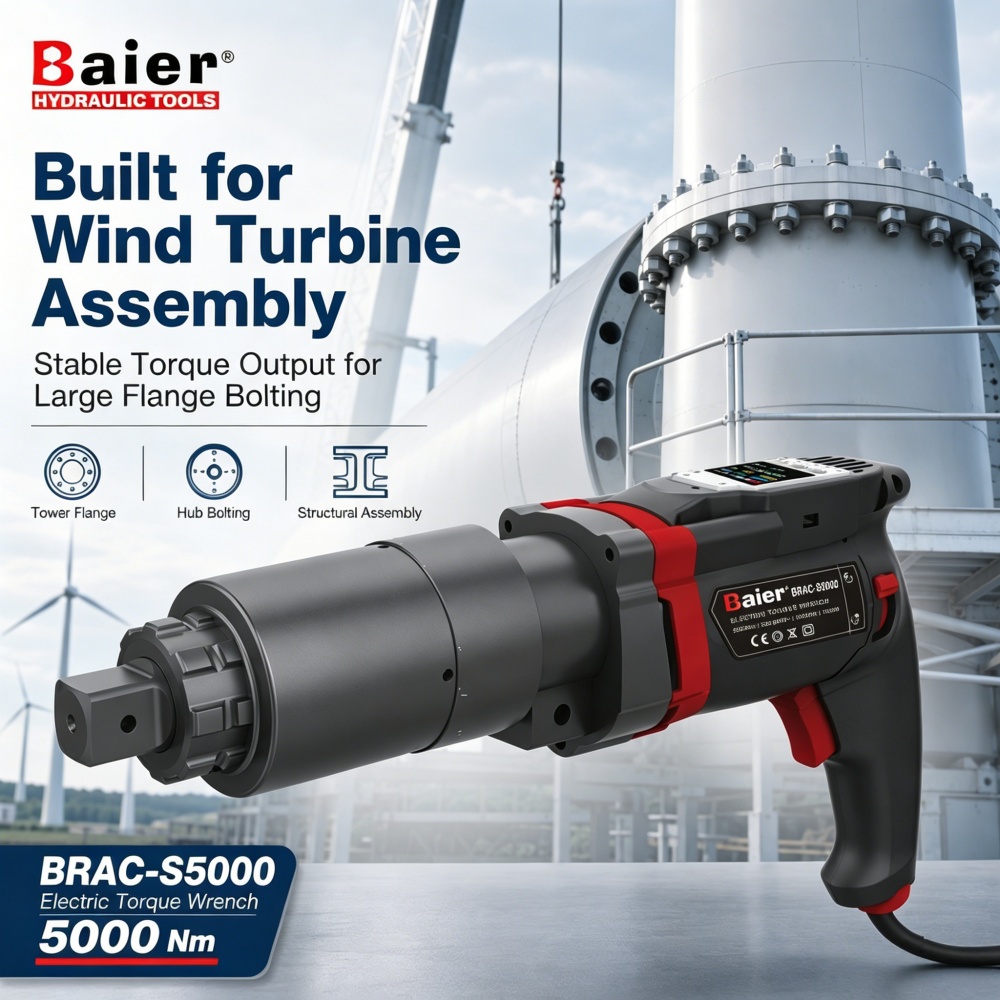

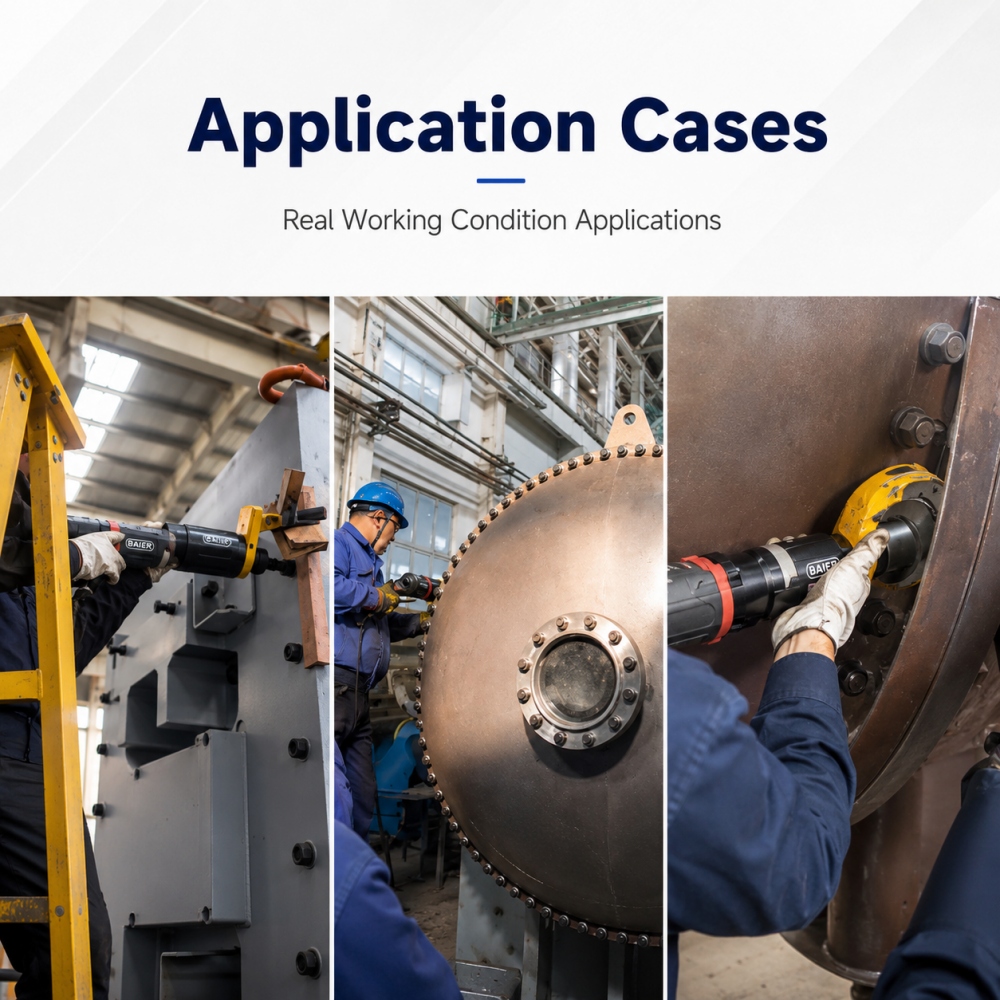

Why BRAC-S5000 for Wind Turbine Assembly

Wind turbine assembly requires stable torque output, reliable continuous operation and efficient on-site setup. The BRAC-S5000 is suitable for tower flange bolting, hub assembly, structural bolt tightening and other high-strength bolting tasks where hydraulic setup is not preferred.

Its plug-in AC design helps reduce preparation time on site. Operators can work without hydraulic pumps, oil hoses or additional hydraulic connections, making the tool suitable for wind power installation, maintenance and large industrial assembly projects.

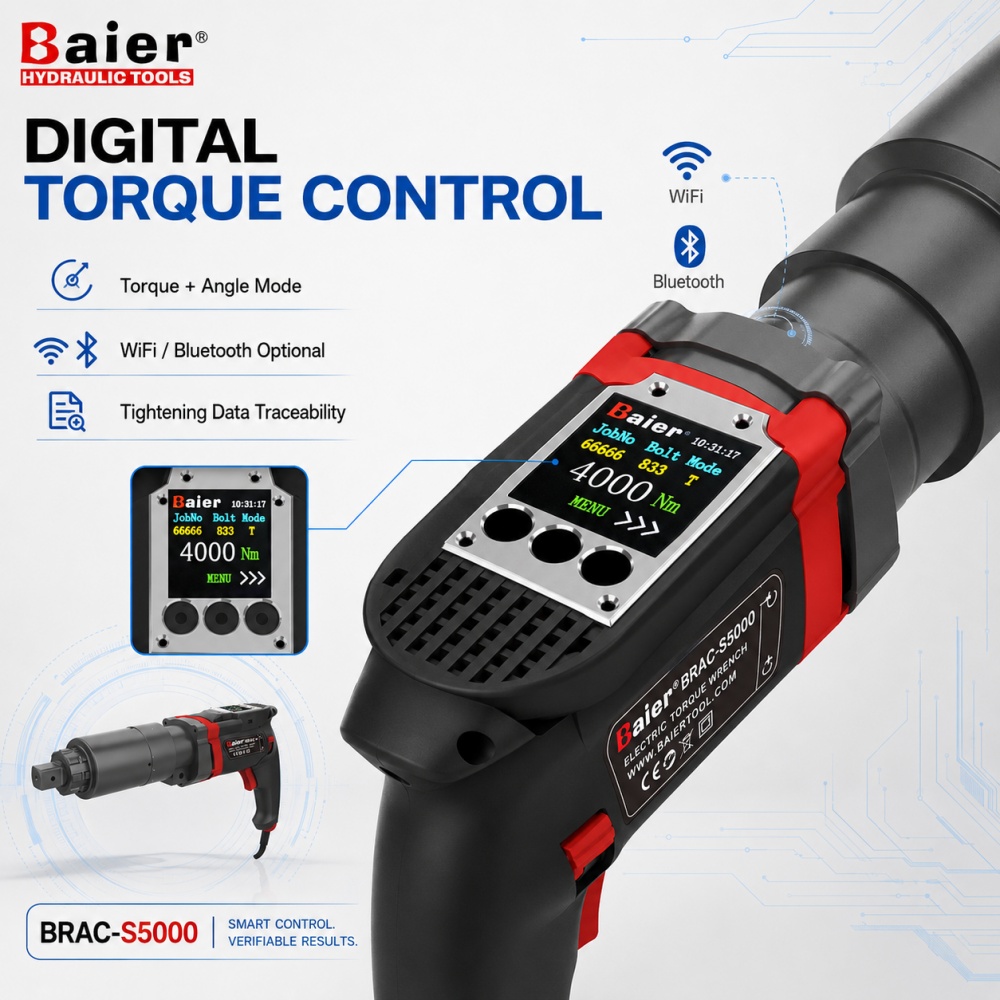

Digital Torque Control & Optional Data Tracking

The BRAC-S5000 supports torque mode and torque + angle mode, helping operators control tightening more accurately in industrial bolting applications. The digital control interface allows users to set torque values and monitor working status during operation.

WiFi and Bluetooth versions are available for projects that require tightening data recording, traceability and quality control documentation.

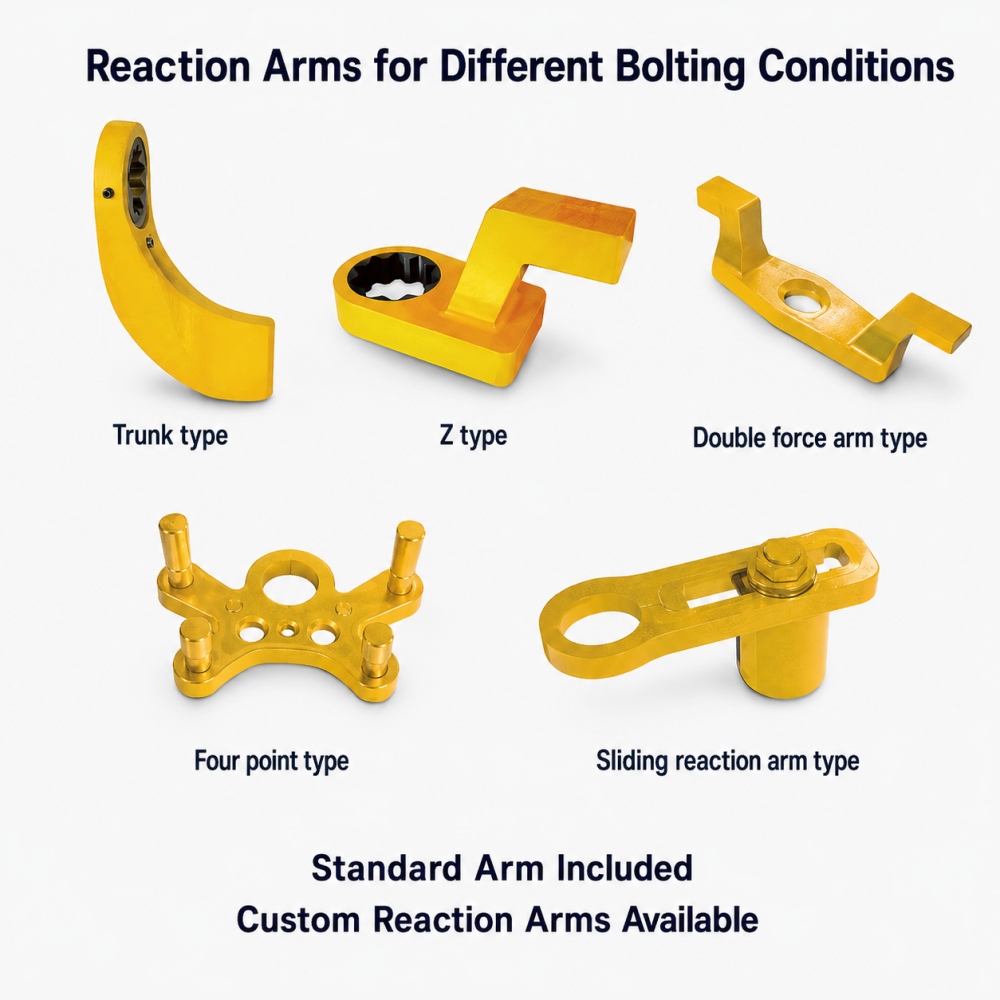

Reaction Arms & Accessories

Reaction Arms for Different Bolting Conditions

The BRAC-S5000 is supplied with a standard reaction arm. For special bolt positions, restricted spaces or customized industrial fixtures, Baier can provide custom reaction arms to improve tool positioning and working stability.

Common reaction arm options include trunk type, Z type, double force arm type, four point type and sliding reaction arm type.

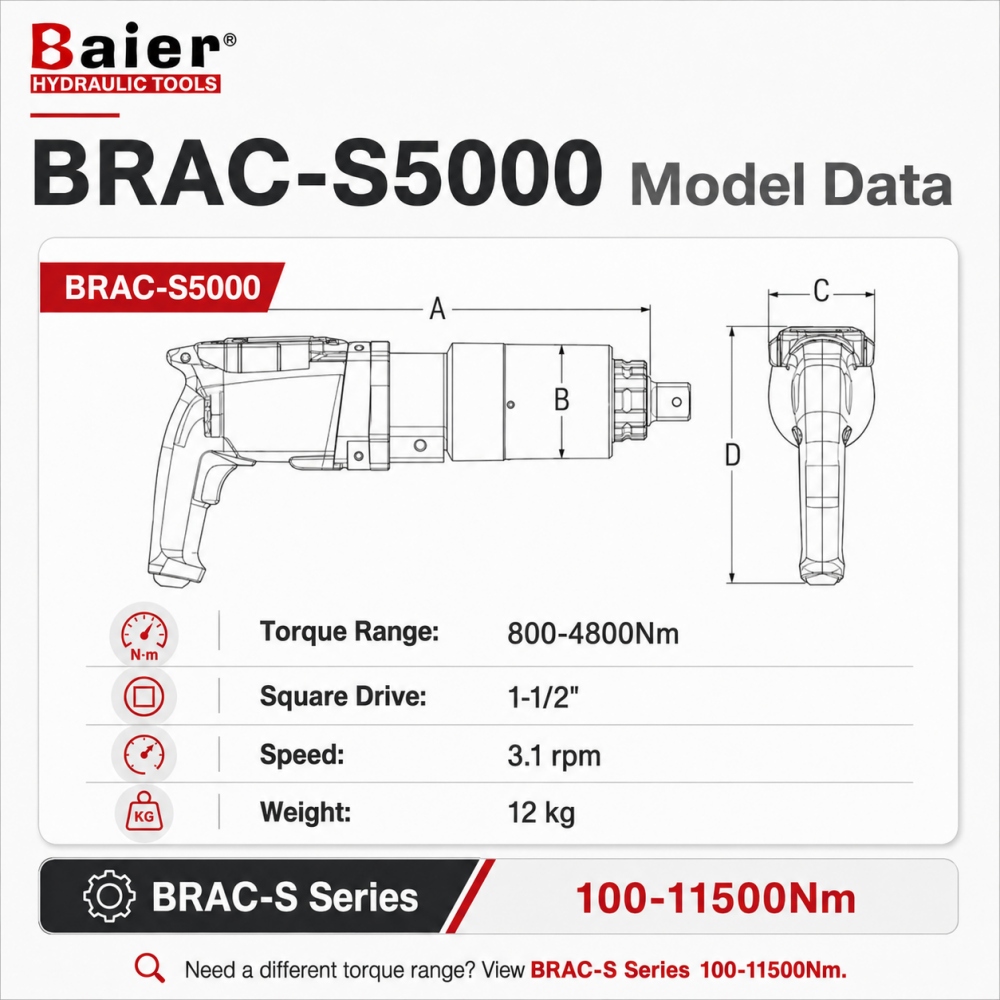

Technical Specifications

Need other torque ranges?
BRAC-S Series covers multiple models from 100Nm to 11500Nm for different industrial bolting applications. View the full BRAC-S Series Plug-in Electric Torque Wrench model selection.

Parts Included:

Torque Gun

Power Adapter

Reaction Arm

USB Cable

Tool Case

How to choose and maintain an electric torque wrench?

Choosing the right electric torque wrench depends on bolt size, strength grade, target torque and working conditions. For safe and stable operation, the commonly used working torque should generally be within 80% of the wrench’s maximum torque capacity.

For bolt loosening applications, the required torque can be 1.5 to 2.5 times higher than the tightening torque, especially when bolts are rusted, overloaded or used in harsh outdoor environments. Please confirm the bolt specification and working condition before model selection.

1.  Confirm the bolt size, strength grade and required tightening torque before selecting a model.

2.  Keep the regular working torque within 80% of the wrench’s maximum torque capacity.

3. For bolt loosening, consider that dismantling torque may be 1.5–2.5 times higher than tightening torque.

4.  Choose the correct impact socket according to bolt and nut size.

5.  Select or customize a suitable reaction arm based on the working space and reaction point.

6. This product is not waterproof. Do not use it in rain, underwater or in wet environments.

7.  Store the wrench properly after use and recalibrate it after maintenance or long-term operation.

For BRAC-S5000, the recommended working range should be selected based on the required project torque, bolt condition and whether the tool is used for tightening or loosening.

After-Sales Service & Distributor Support

Baier provides after-sales and technical support for overseas industrial customers and distributors. We support product operation guidance, torque setting assistance, maintenance advice and spare parts supply to help customers use the tool more efficiently in long-term industrial bolting applications.

1.  12-month warranty

2.  Online technical guidance

3.  Spare parts support

4. Factory repair service

5. Product replacement when required

6.  Long-term distributor cooperation

FAQ

Q1: What motor does the BRAC-S5000 electric torque wrench use?

The BRAC-S5000 uses a Metabo motor platform for stable power output and reliable industrial operation.

Q2: What is the torque range of the BRAC-S5000?

The BRAC-S5000 provides 800-4800Nm torque output for large flange bolting and heavy industrial construction.

Q3: Is BRAC-S5000 suitable for wind turbine assembly?

Yes. It is suitable for wind turbine tower flange bolting, hub assembly and structural bolt tightening.

Q4: Does the BRAC-S5000 need a hydraulic pump?

No. It works with 110-220V AC power and does not require an external hydraulic pump or oil hoses.

Q5: Can the BRAC-S5000 support torque + angle tightening?

Yes. It supports torque mode and torque + rotating angle mode.

Q6: Is WiFi or Bluetooth available?

Yes. WiFi and Bluetooth versions are available for tightening data tracking and project traceability.

Q7: What after-sales support does Baier provide?

Baier provides warranty support, online technical guidance, spare parts supply, repair service and long-term distributor cooperation.
